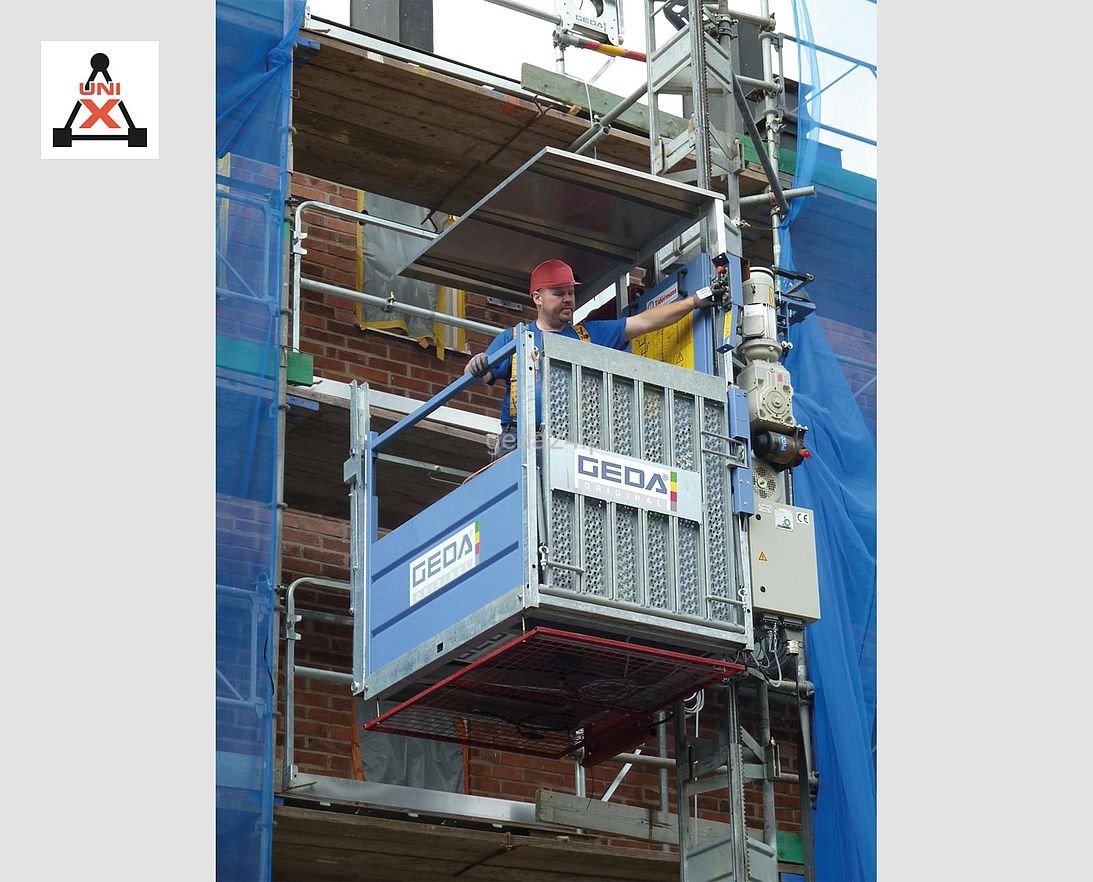

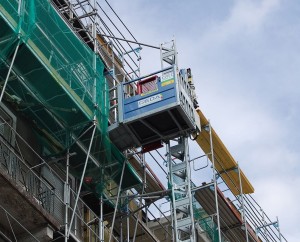

Geda 300 Z/ZP Gen 2, 400V for 12m - Transport platforms for persons and material
Regular price:
Regular price:
product unavailable
add to wish list
5
Description
Feel free to contact us for personalized terms and conditions!!!
Geda 300Z/ZP Gen 2 400V 12m - Transport platforms for persons and material

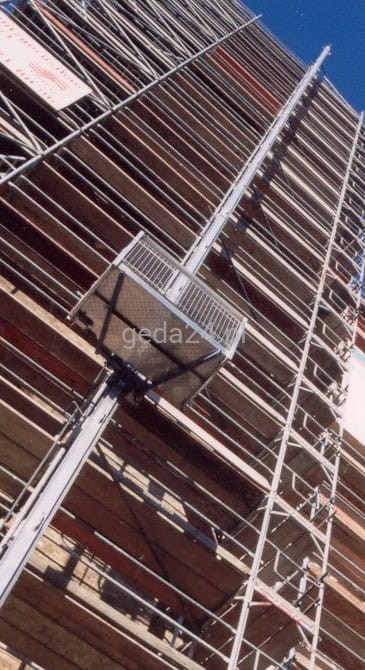

Transport platform with galvanised steel mast for persons and material.
Power suply: 400V/50Hz
300kg or 3 person for transport mode personal or 500kg for material transport mode.
Lifting speed: 12 m/min.
Lifting height: 12 m
Base unit consists of:

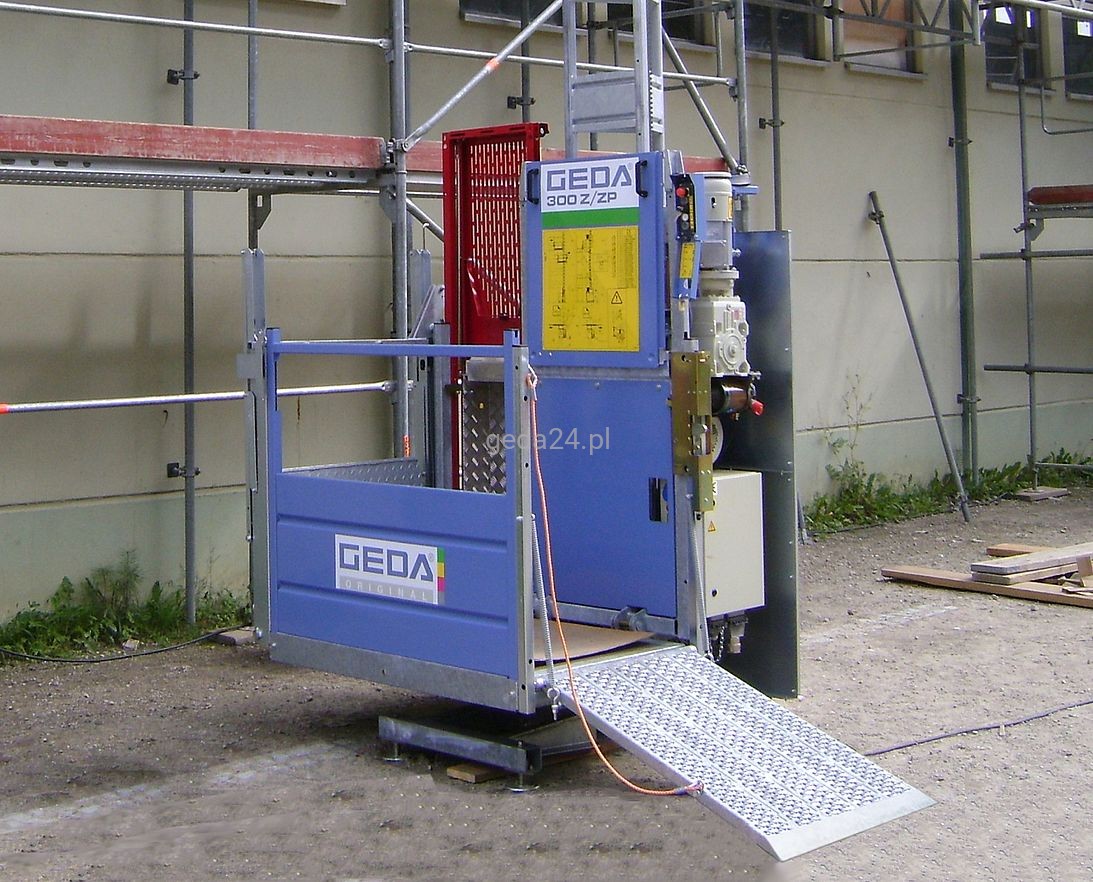

• Load platform A 1.35 x 0.95 m foldable with Send- and collect-control unit permanently installed, key switch (incl. automatic reset in material mode), assembly control (with separate key), power socket 230 V, loading ramp
• Foot section with 4 adjusting spindles and base mast 1.9 m
• Trolley with drive unit 1.9 kW/400 V/50 Hz and overspeed safety brake
• Safety stop approx. 2 m above the ground and warning sound and repeating of the drive command
• Operation and emergency limit switches at top and bottom
• Overload protection with indication
• Integrated monitoring of the mast screwing and mast end
• Stop bars (one for landing and one for emergency stop)
• Manual control with 5 m cable, plug-in type
• Control for drop test with 10 m cable, plug-in type
• Automatic lubrication system
• Tear off securing for trailing cable
• Hour meter

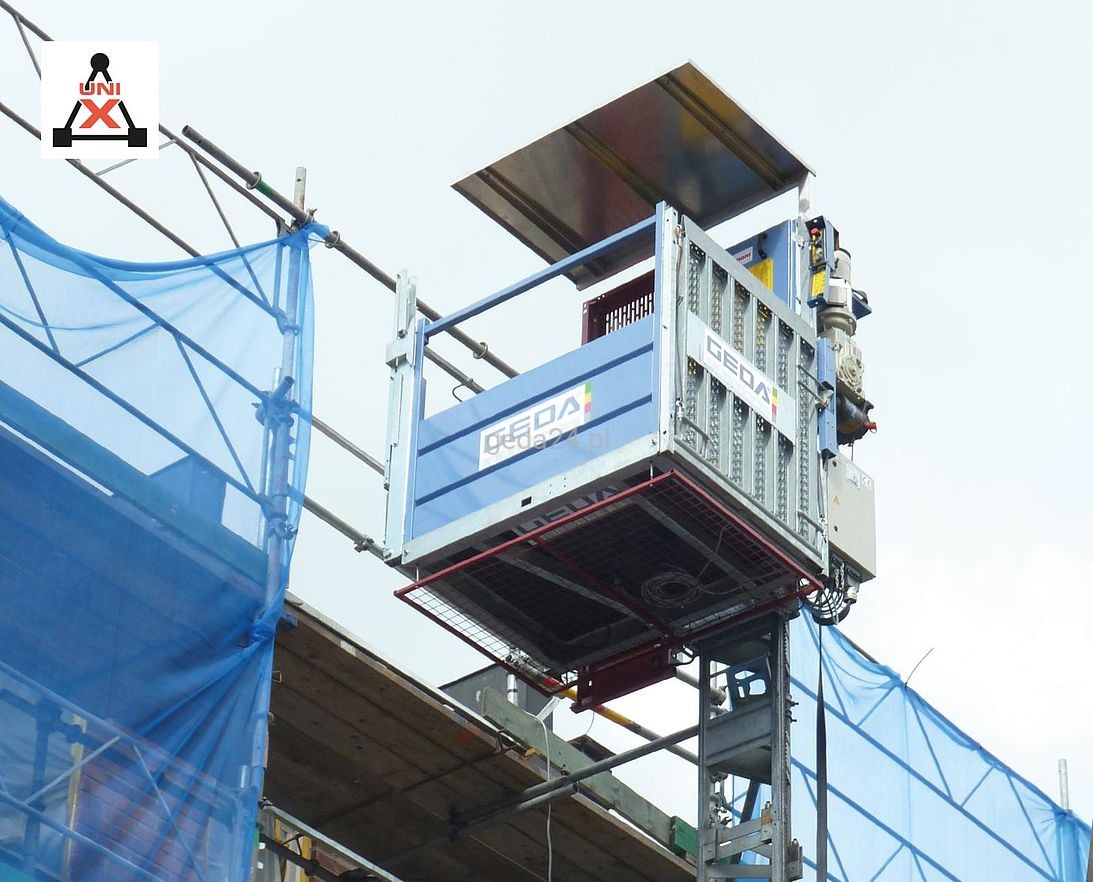

• Roof
• Anti-smashing-device
• Cable bin with trailing cable (400 V) 25 m
• GEDA UNI-X-MAST x 8 pcs.
• Set of mast tie x 3 pcs.
• Trailing cable guide x 2 pcs.

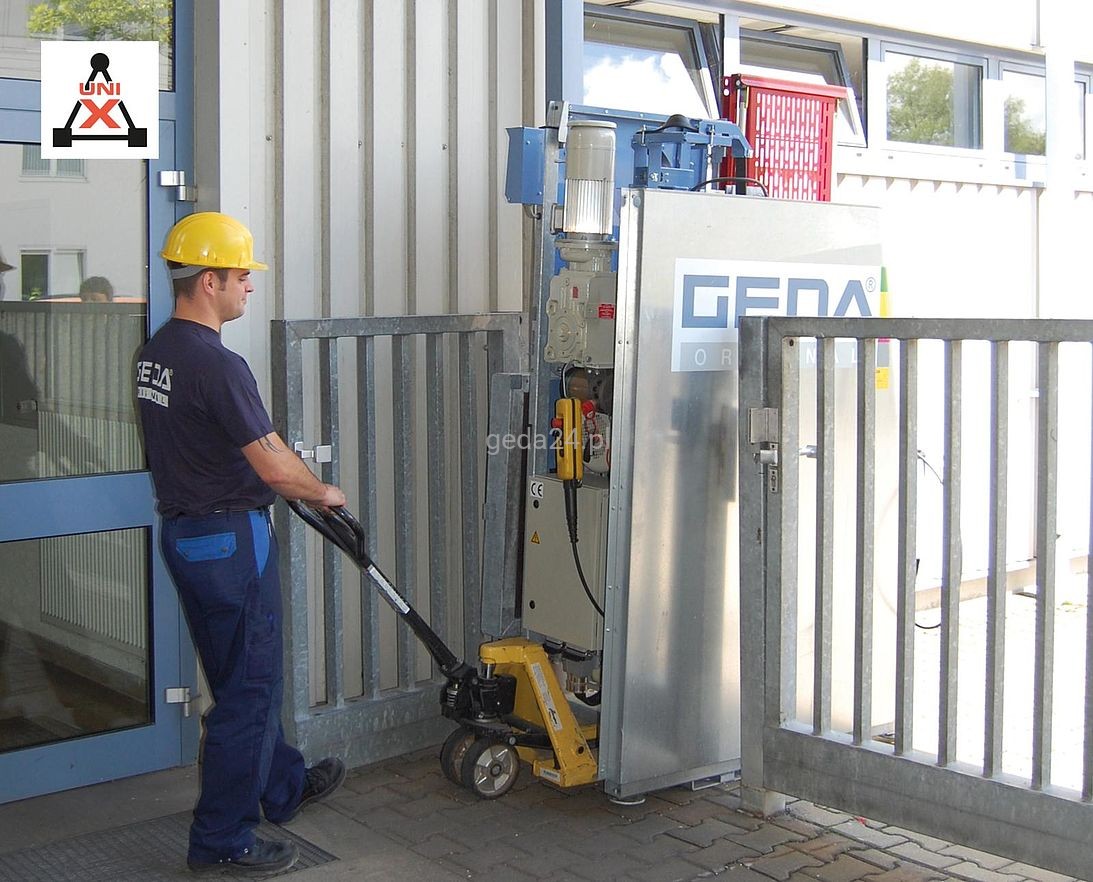

The smallest of the GEDA transport platforms for persons and material has a number of advantages. When folded up, GEDA 300 Z/ZP is only 0.85 m wide, which makes it easy to transport to the construction site - even through narrow passages. Thanks to the convenient forklift pockets, the entire unit can be easily transported with a pallet truck or forklift.

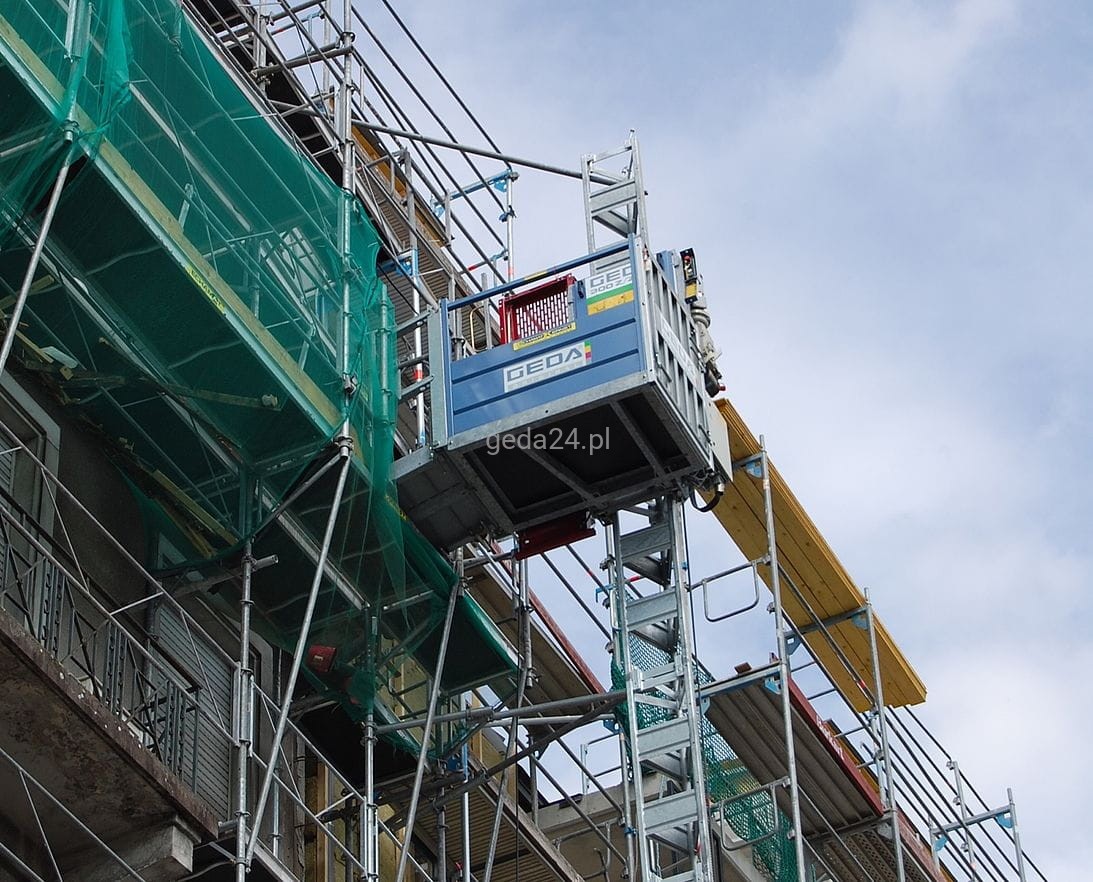

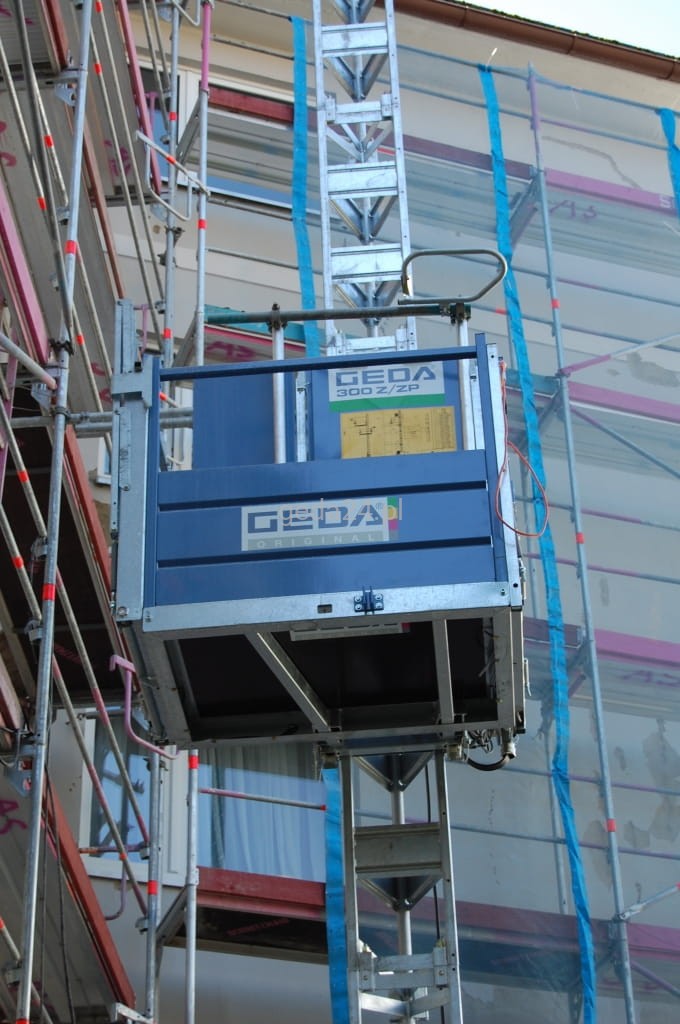

On the construction site GEDA 300 Z/ZP reveals its true size: its compact 1.35 x 0.95 m platform and flat cable box can be set up even on the narrowest walkways and smallest courtyards.

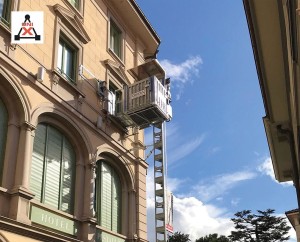

Two separate controls quickly turn the material hoist into a transport platform, which is also approved for transporting up to three passengers. In addition to the 400 V model, the unit is also available in a 230 V version. The 230 V lift can simply be connected to an existing power source without the need for a separate high-voltage connection. This is often a major advantage, especially when renovating older buildings.
If you have any further questions, please email us: p.wolny@geda24.pl
