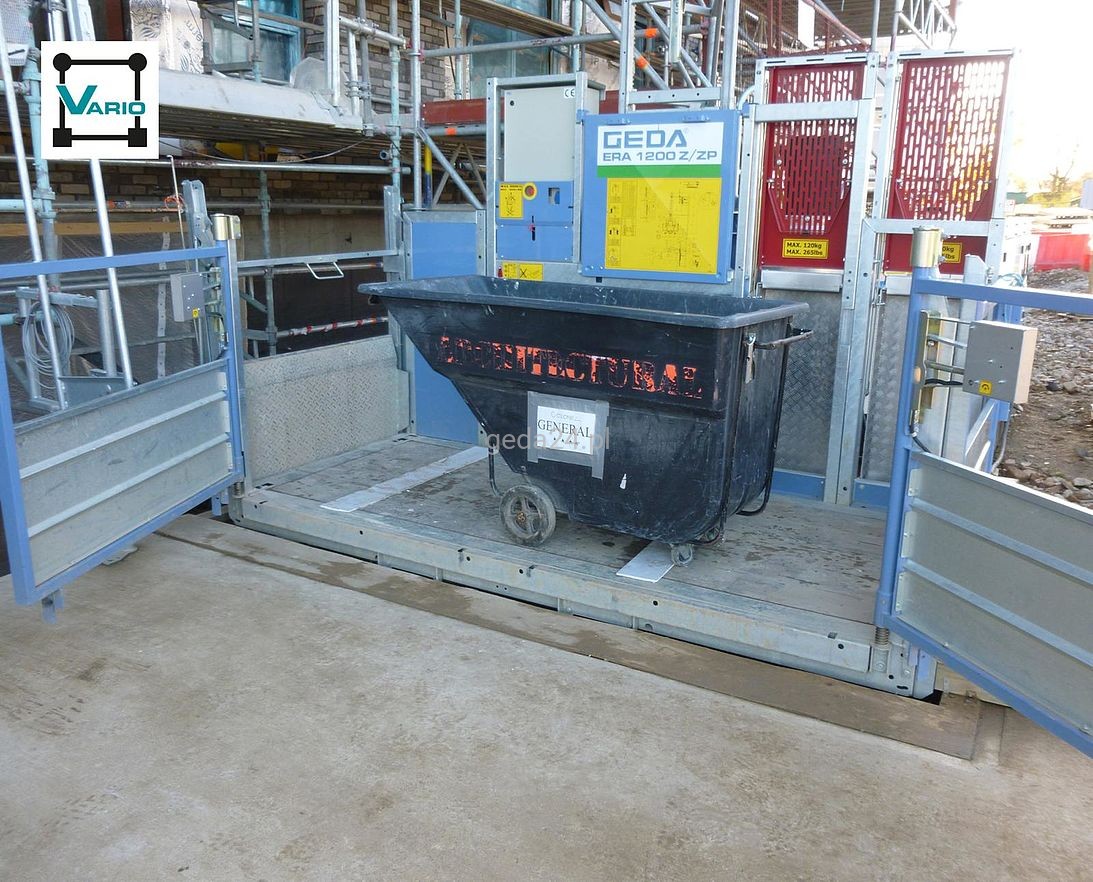

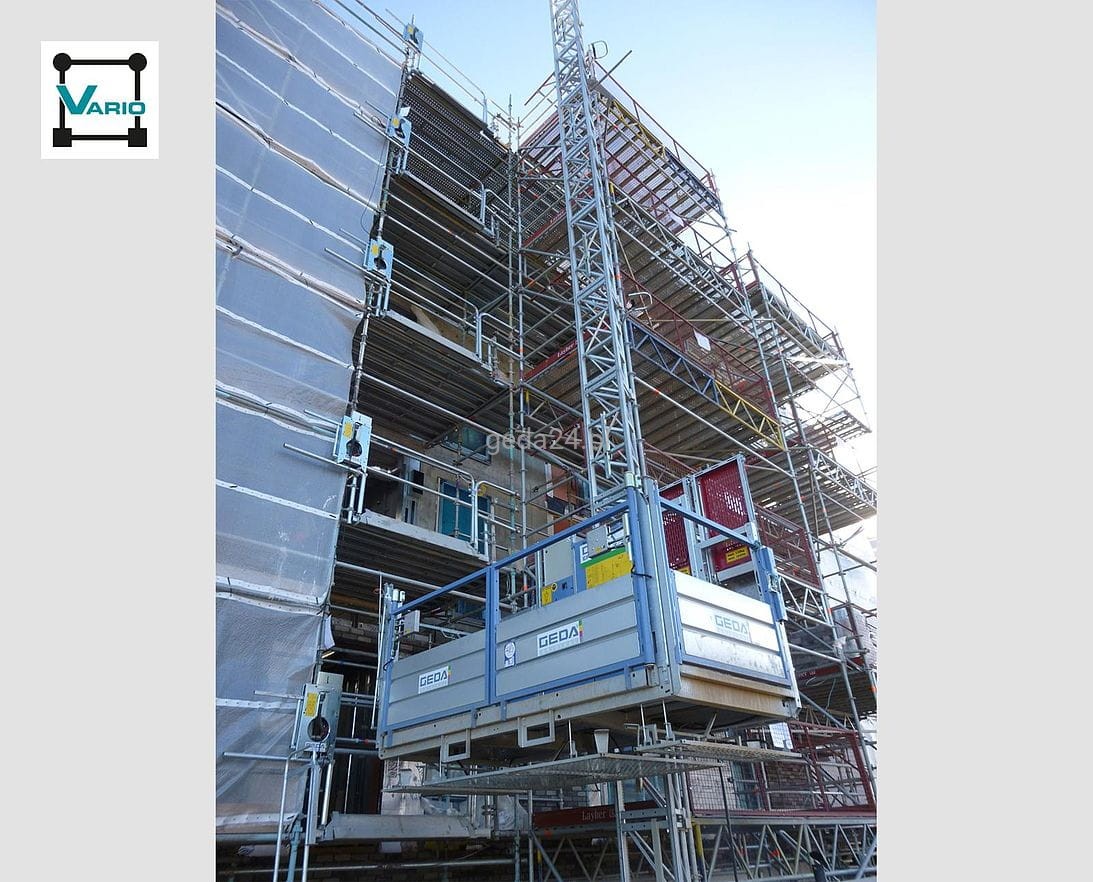

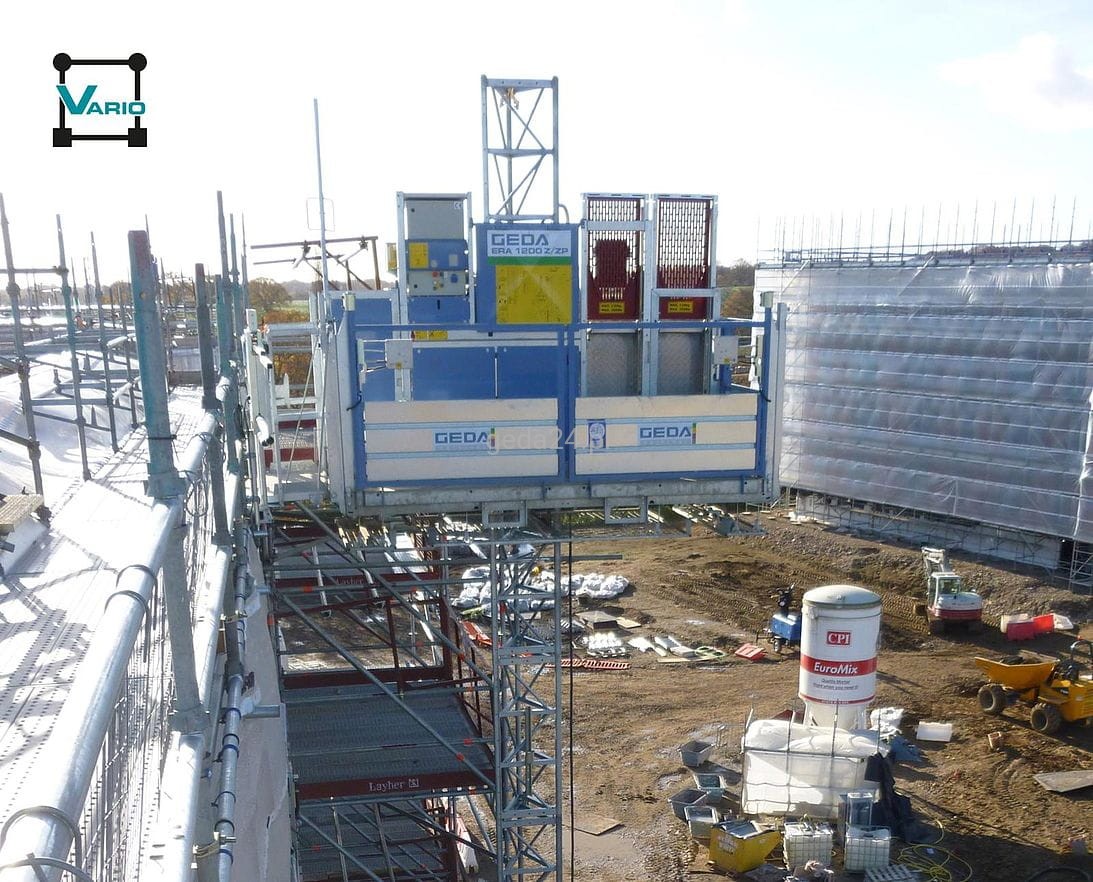

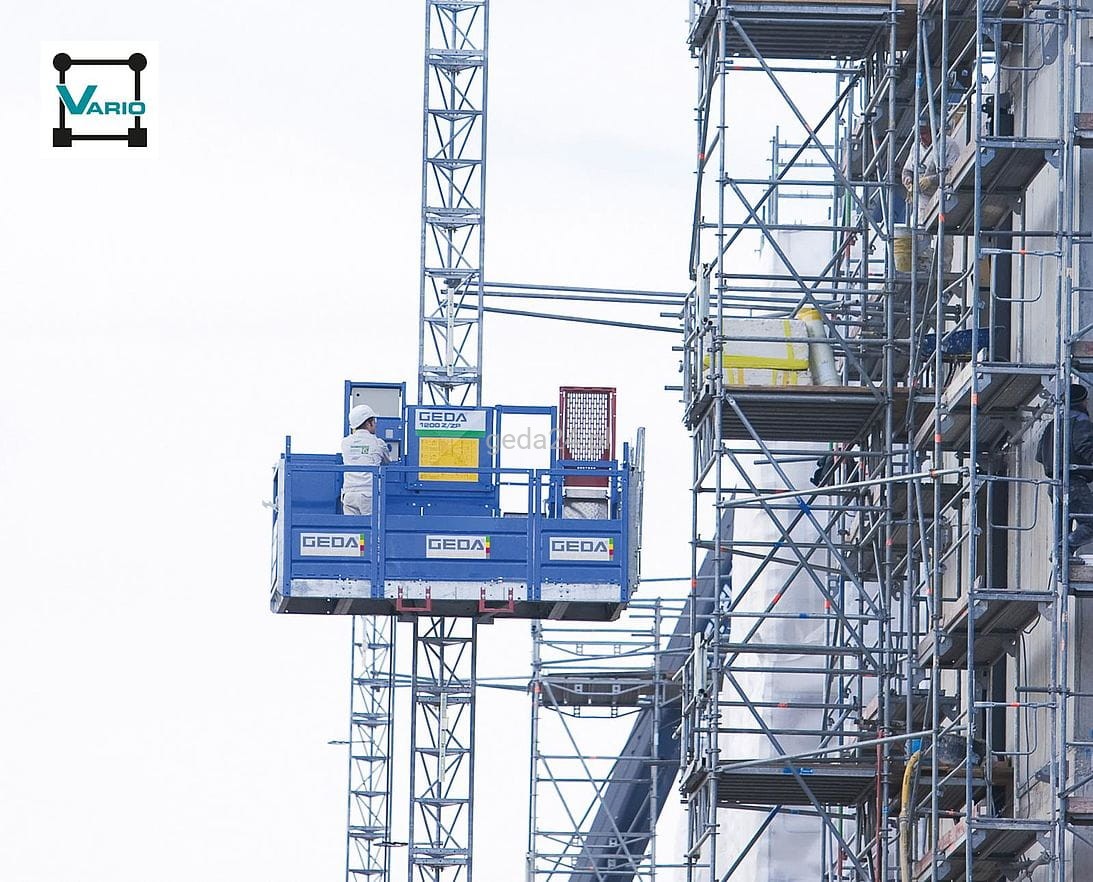

Geda 1200 Z/ZP Gen 2 for 12m - Transport platforms for persons and material
Regular price:
Regular price:
product unavailable
add to wish list
5
Description
Feel free to contact us for personalized terms and conditions!!!
Geda 1200 Z/ZP Gen 2 for 12m - Transport platforms for persons and material
Lifting hight: 12m
Power supply: 400V/50Hz
Load capacity: material/passenger: 1500Kg
Lifting speed: 12/24 m/min.
The set consists of:
- Foot section with 4 adj. spindles and 2 base masts 2.3 m
- Drive unit (2 x 3.0/6.1 kW/400 V/50 Hz) with overspeed safety brake
- Safety stop approx. 2 m above the ground and warning sound and repeating of the drive command
- Operation and emergency limit switch (up and down direction) as well as limit switches end and connection of the mast sections
- Send- and collect-control unit permanently installed, assembly control with key switch and power socket 230 V
- Overload protection with indication
- Stop bar for landing level stop
- Top emergency Stop bar
- Manual control with 5 m cable
- Control for drop test with 10 m cable, plug-in type
- Support for fork lifts
- 1 loading door
- 1 unloading ramp with side guards
- Assembly plank for the platform (small foldable platform to anchor the mast without scaffold between hoist and building)
- Automatic lubrication system
- Tear off securing for trailing cable
- Hour meter
- Roof
- Anti-smashing-device
- Cable bin with trailing cable 50 m
- GEDA VARIO-MAST Triangular x 8 pcs.
- Set of mast tie x 3 pcs.
- Trailing cable guide x 2 pcs.
Available transport platforms for the Geda 1500Z/ZP unit include:
- Platform „B“ 1,4 x 2,6 x 1,1/1,8 m, Load capacity 1200 kg
- Platform „C“ 1,4 x 3,2 x 1,1/1,8 m, Load capacity 1000 kg
- Platform „C 1500 kg“ 1,4 x 3,2 x 1,1/1,8 m, Load capacity 1500 kg
The high load capacity of the GEDA 1200 Z/ZP enables quick and safe transport of even large and heavy construction materials.
The transport platform control with a speed of 12 m/min is activated for passenger and material transport. For transporting only building materials, the unit is switched to material lifting mode with a lifting speed of 24 m/min.
The proven design and experience gained make it possible to offer a unit with a maximum unloading capacity of 150m.
If you have any further questions, please email us: p.wolny@geda24.pl
