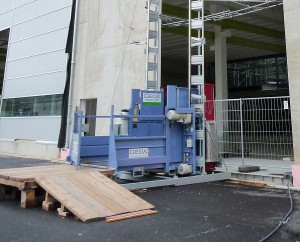

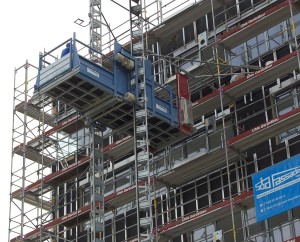

Geda 1500 Z/ZP, Gen 2 for 12m, platform "B" - Transport platforms for persons and material (1)
Regular price:
Regular price:
product unavailable
add to wish list
5
Description
Feel free to contact us for personalized terms and conditions!!!
Geda 1500 Z/ZP, Gen 2 for 12m, platform "B" - Transport platforms for persons and material
Geda 1500 Z/ZP, Gen 2 for 12m, platform "B" - Transport platforms for persons and material
Power supply: 400V/50Hz
Load capacity: material/passenger: 1500Kg
Lifting speed: 12/24 m/min.
The set consists of:

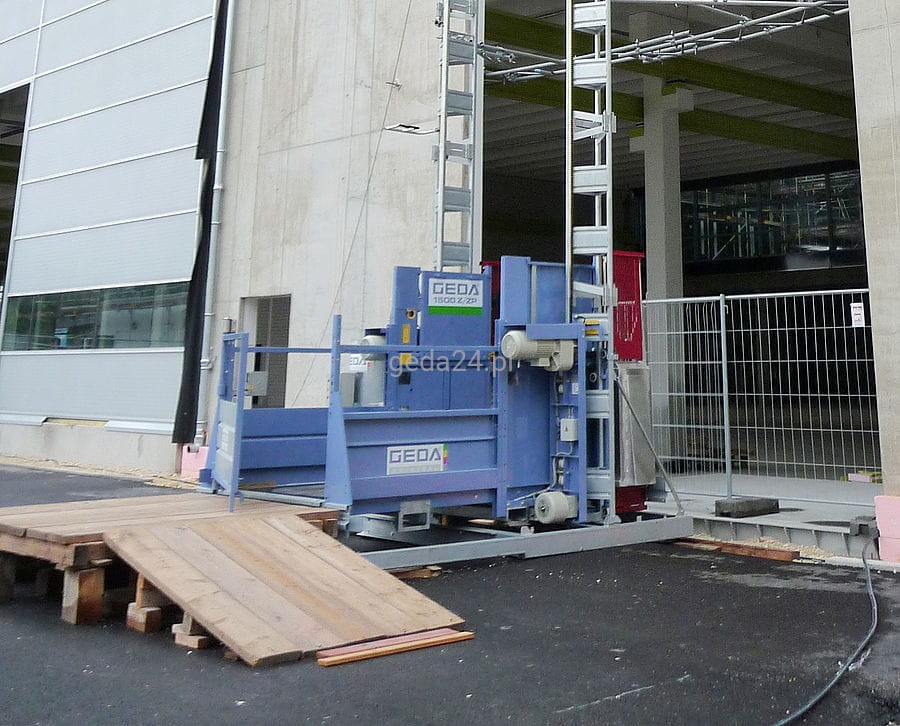

- Foot section with 4 adj. spindles and 2 base masts 2.3 m

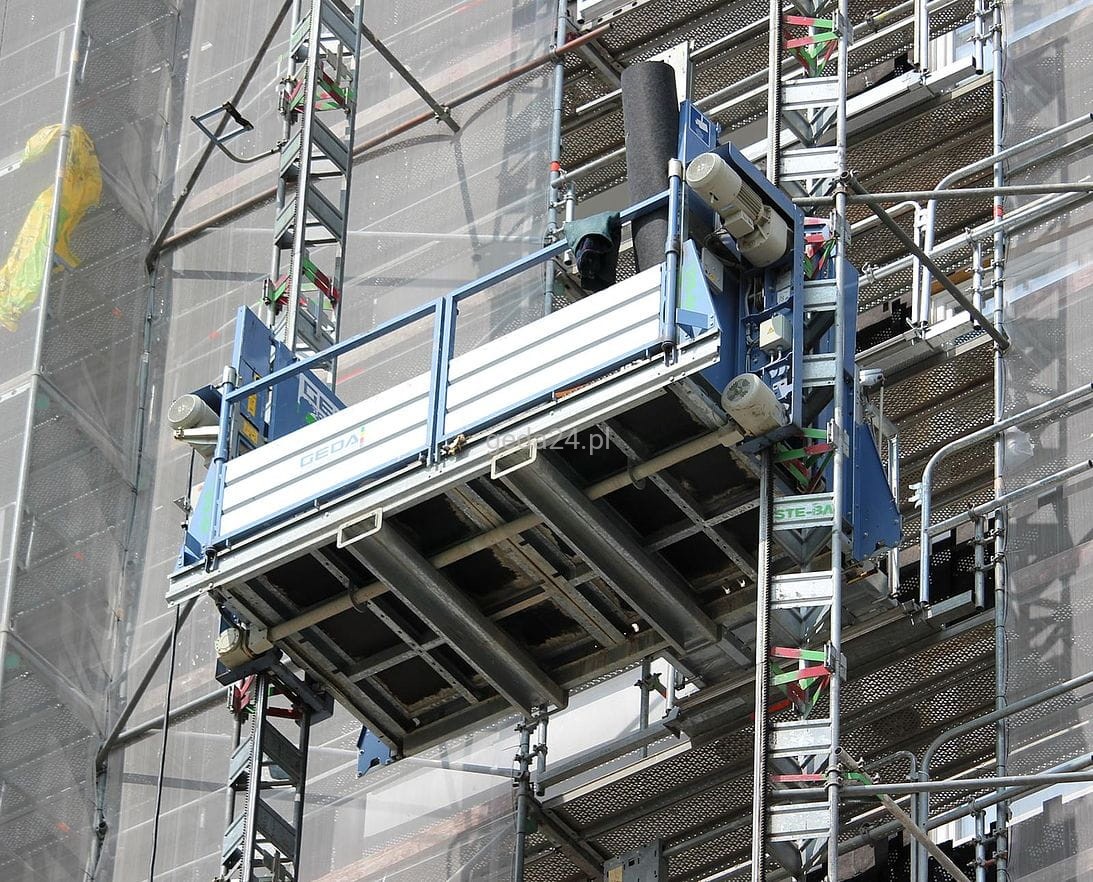

- Load platform “B“ 1.45 x 3.30 m (1 loading doors/1 unloading ramp) with trolley with overspeed safety brake
- Two drive units each 3.0/6.1 kW/400 V/50 Hz
- Safety stop approx. 2 m above the ground with warning sound and repeating of the drive command
- Operation and emergency limit switches (up and down direction) as well as limit switches for mast end and mast connection
- Send- and collect-control unit permanently installed, with key-switch, assembly control and power socket 230 V
- Overload protection with indication
- Integrated monitoring of the mast screwing and mast end
- Stop bars (one each for landing level stop and emergency-off)
- Manual control 5 m, plug-in type
- Control for drop test with 10 m cable, plug-in type
- Crane jacks and pickup for transport by fork lift truck
- Automatic lubrication system
- Tear-off securing for trailing cable
- Hour meter
- Anti-smashing-device for platform „B“
- Roof for platforms “B”
- Cable bin with trailing cable 25 m lifting height
- GEDA UNI-X-MAST x 16 pcs.
- Set of mast tie x 3 pcs.
- Trailing cable guide x 4 pcs.
The unit can be individually priced with other platforms and accessories, e.g. roof, unloading gates, floor control modules, assembly plank or diagnostic system.
Available transport platforms for the Geda 1500Z/ZP unit include:
- Load platform „A“ 1.45x1.65 x height 1.1/1.8 m, Load capacity 2000kg
- Load platform „B“ 1.45 x 3.3 x height 1.1/1.8 m, Load capacity 1500kg
- Load platform “BS” 1.45 x 3.3 x height 1.1/1.8 m, Load capacity 2000kg
- Load platform “BL” 1.45 x 4.15 x height 1.1/1.8 m, Load capacity 1200kg
- Load platform “BLL” 1.45 x 4.95 x height 1.1/1.8 m, Load capacity 850kg
- Load platform „C“ 2.9 x 1.65 x height 1.1/1.8 m, Load capacity 2000kg
- Load platform „D“ 2.9 x 1.65 x height 1.1/1.8 m, Load capacity 2000kg
- Load platform „E“ 2.9 x 1.65 x height 1.1/1.8 m, Load capacity 2000kg
- Load platform “ED” 2.9 x 1.65 x height 1.1/1.8 m, Load capacity 2000kg
- Load platform „F“ 4.35x1.65 x height 1.1/1.8 m, Load capacity 2000kg
- Load platform „G“ 4.35x1.65 x height 1.1/1.8 m, Load capacity 2000kg
- Load platform „GD“ 4.35x1.65 x height 1.1/1.8 m, Load capacity 2000kg
- Load platforma „H“ 4.35x1.65 x height 1.1/1.8 m, Load capacity 2000kg
- Load platform „I“ 4.35 x 1.65 x height 1.1/1.8 m, Load capacity 2000kg

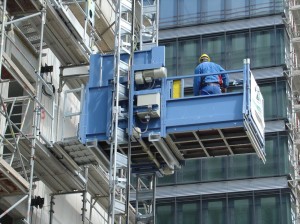

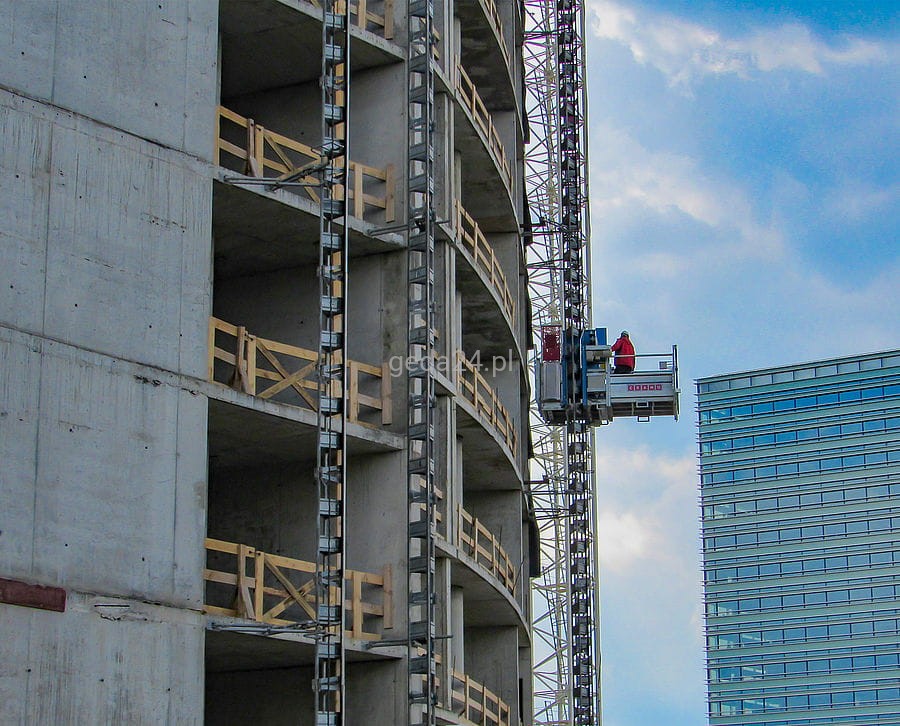

GEDA 1500 Z/ZP has two separate control systems and can be used as a material lift alone or as a transport platform for passengers and materials.
The transport platform control with a speed of 12 m/min is activated for passenger and material transport. For transporting only building materials, the unit is switched to material lifting mode with a lifting speed of 24 m/min.

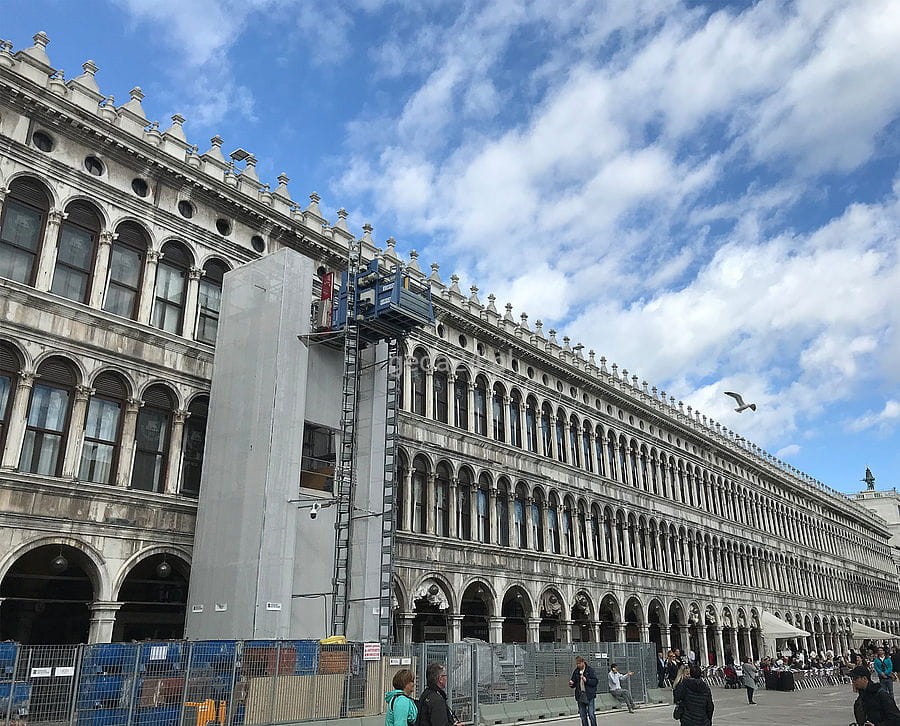

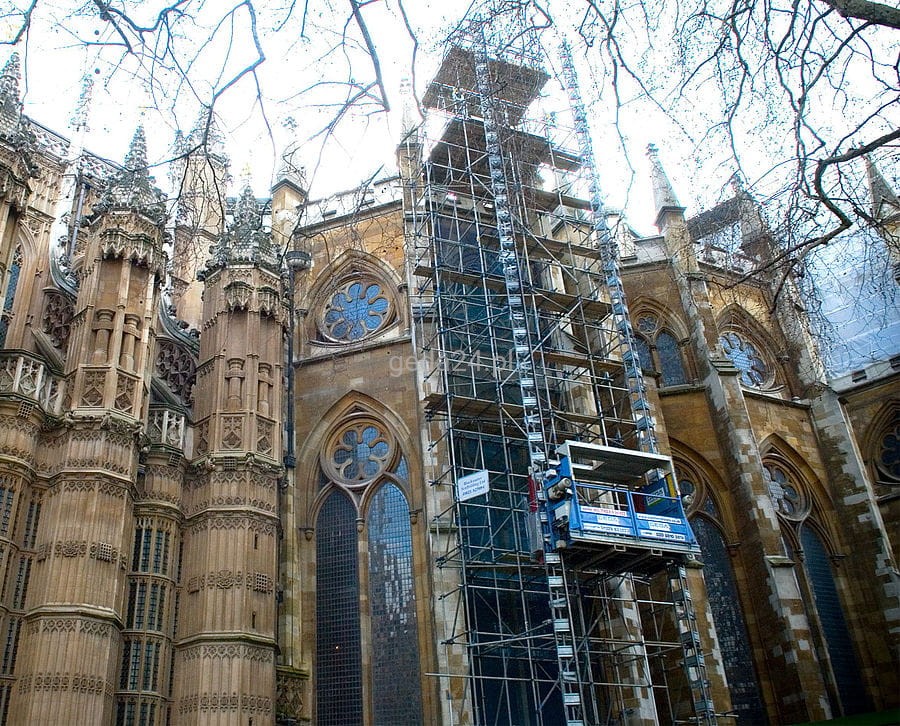

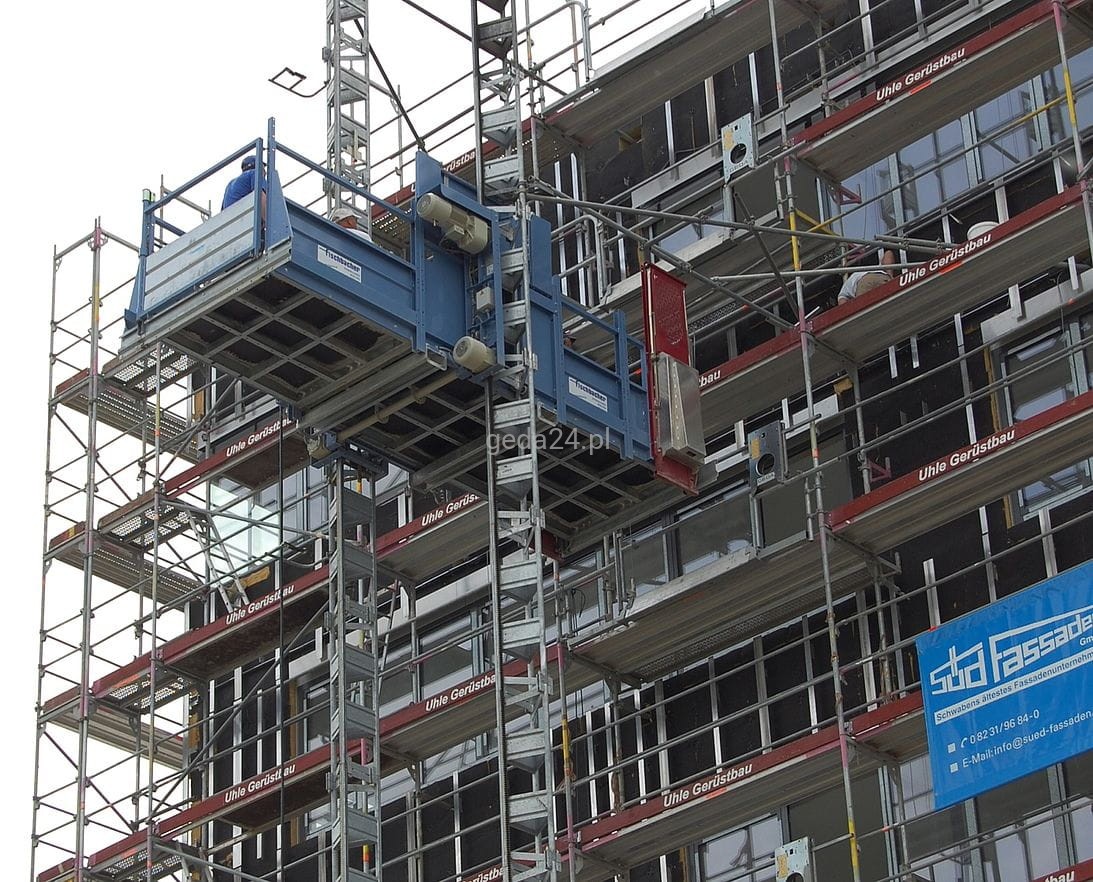

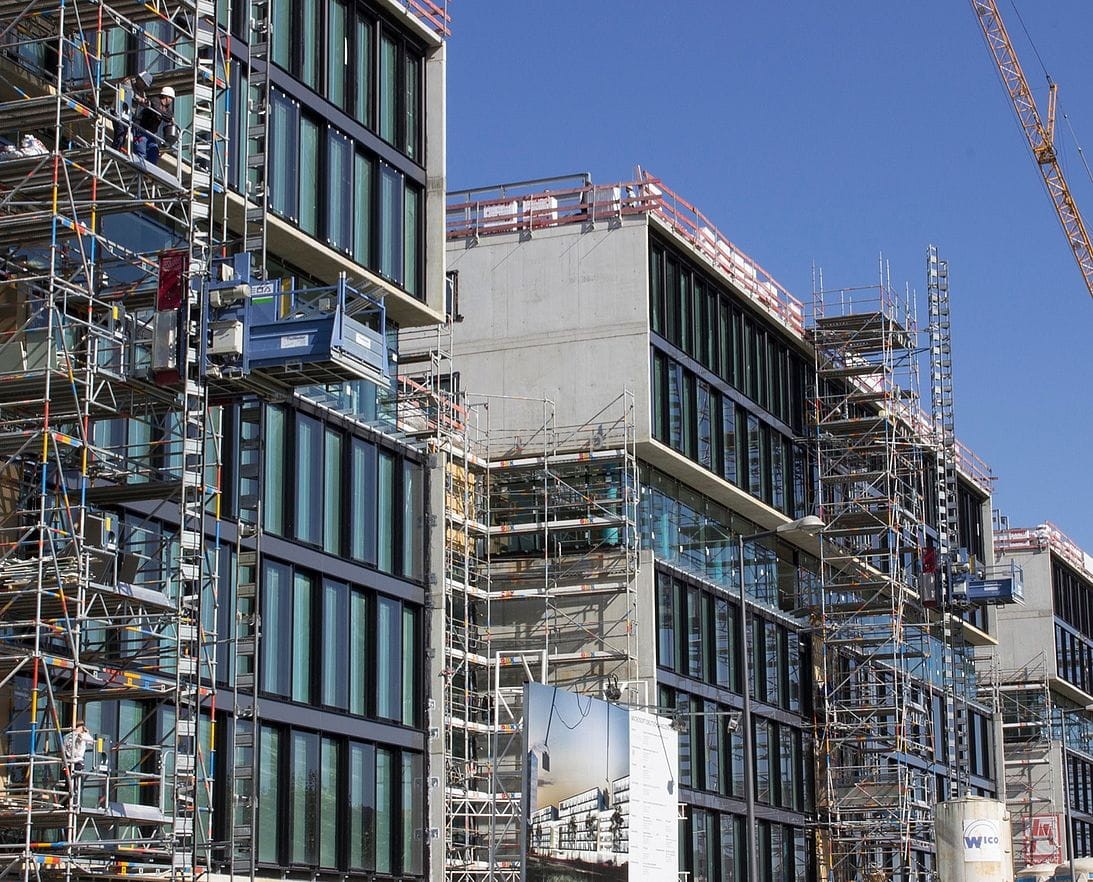

One device, many possibilities: the GEDA 1500 Z/ZP twin-mast transport platform adapts perfectly to almost any conditions on the construction site thanks to a convenient modular system with 14 different platform versions and various lifting capacities. The large loading platform variants of the GEDA 1500 Z/ZP offer plenty of space - even for transporting particularly heavy and bulky materials.
If you have any further questions, please email us: p.wolny@geda24.pl
Related products
Geda 1500 Z/ZP, Gen 2 for 12m, platform "A" - Transport platforms for persons and material
Net price: €61,440.00
Geda 500 ZP/ 1000 Z Gen 2 for 12m - Transport platforms for persons and material
Net price: €35,397.00
Geda 500 Z/ZP Gen 2, 400V for 12m - Transport platforms for persons and material (1)
Net price: €888.89

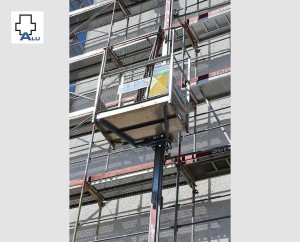

Material Hoist Geda 300Z 400V for 12m (1)
