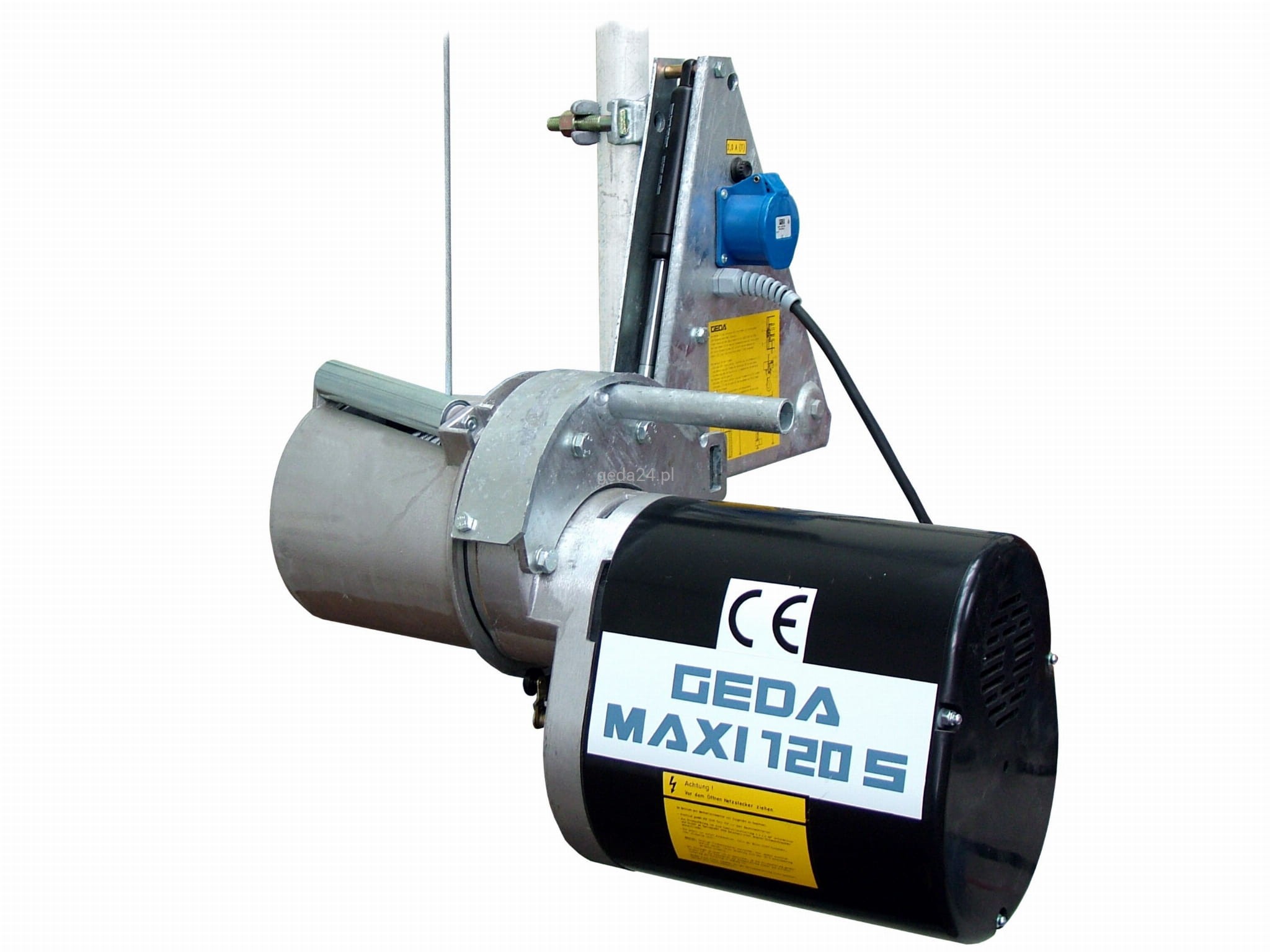

GEDA MAXI 120S 81m – Professional Scaffold Hoist for Fast Transportation of Construction Materials on Building Sites

The Most Popular GEDA Construction Hoist for Professional Building Contractors

The GEDA MAXI 120 S with an 81 m wire rope is a professional rope hoist designed for transporting construction materials to scaffolding, roofs, façades, and upper floors of buildings. For many years, this device has been one of the most popular construction hoists among scaffolding contractors, roofing companies, façade specialists, general construction firms, and renovation contractors throughout Europe.

The combination of high lifting speed, low dead weight, and a lifting capacity of up to 120 kg significantly improves material handling on construction sites while reducing the need for manual transportation via stairs, ladders, or scaffold structures.

This solution has been developed for professionals who require safe, efficient, and reliable transportation of tools, building materials, and work equipment to elevated working areas every day.

Why Choose the GEDA MAXI 120S?

Unlike basic construction hoists, the GEDA MAXI 120S has been designed for intensive daily use. Its robust hot-dip galvanized steel construction provides excellent resistance to weather conditions, while the dual-speed lifting system allows the operator to adjust lifting performance according to the type of load being transported.

The hoist can be used during scaffold erection, roofing projects, façade works, building renovations, residential construction, industrial developments, and commercial building projects.

Key Benefits

• Fast transportation of materials to elevated work areas
• Reduced labour costs and physical effort
• Improved worker safety
• Quick installation and dismantling
• Suitable for operation at significant heights
• Reliable German-engineered construction
• Wide range of transport accessories available
• Lightweight and easy to move between projects
• High mobility on construction sites
• Long service life even under intensive use

Two Lifting Speeds – Up to 60 m/min

One of the greatest advantages of the GEDA MAXI 120S is its ability to operate at two lifting speeds:

• 20 m/min
• 60 m/min

This allows the operator to select the most suitable lifting speed for the material being transported. When handling lighter loads, materials can be moved extremely quickly, helping to reduce project completion times and increase productivity.

With a maximum lifting speed of 60 m/min, the GEDA MAXI 120S is one of the fastest scaffold hoists available in its class.

Extended Working Range Thanks to the 81m Wire Rope

The standard package includes an 81-metre steel wire rope.

Depending on the installation method, the hoist can operate at heights of:

• Up to approximately 40 m when the drive unit is mounted at the base of the scaffold
• Up to approximately 76 m with the appropriate configuration and higher positioning of the drive unit

These specifications make the GEDA MAXI 120 S suitable for both residential projects and large commercial developments.

Which Scaffold Hoist Should You Choose?

Choosing the right construction hoist depends on working height, the type of materials being transported, and the intensity of use.

The GEDA MAXI 120S is one of the most frequently selected hoists by construction companies, scaffolding contractors, roofing firms, façade specialists, and renovation professionals looking for equipment that combines lifting capacity, speed, reliability, and long-term durability.

For companies that transport materials daily, investing in a professional scaffold hoist quickly pays for itself through increased efficiency and reduced manual labour.

Applications of the GEDA MAXI 120S

The hoist is commonly used for:

• Scaffold assembly and dismantling
• General construction works
• Façade installation and renovation projects
• Building refurbishment and restoration
• Residential house construction
• Industrial construction projects
• Commercial building developments
• Photovoltaic system installations
• Transportation of tools and construction materials
• Lifting mortar, adhesives, and finishing materials
• Maintenance and servicing works
• Roofing projects

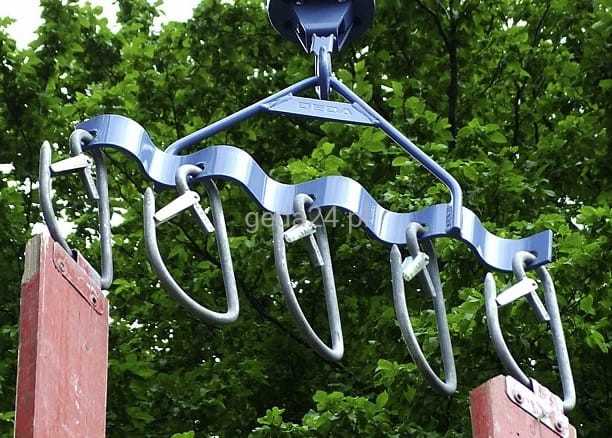

• Roof tile installation

What Materials Can Be Transported?

When equipped with the appropriate transport accessories, the hoist can be used for lifting:

• Buckets of mortar
• Bags of construction materials
• Scaffold components
• Façade materials
• Roofing accessories
• Gutters and sheet-metal flashings
• Construction tools
• Components for photovoltaic installations
• Equipment used during renovation projects

Thanks to the extensive range of optional accessories, a single hoist can be used for many different construction applications.

Comparison: GEDA MAXI 120S, GEDA MAXI 150S or MINI 60S?

Customers frequently compare the MAXI 120S with the MAXI 150S and the smaller GEDA MINI 60S.

GEDA MINI 60S

• Lifting capacity up to 60 kg
• Compact dimensions
• Designed mainly for light-duty work
• Highest lifting speeds: 23 and 69 m/min
• Lower purchase cost

GEDA MAXI 120S

• Lifting capacity up to 120 kg
• Twice the transport capability of the GEDA MINI 60S
• Lifting speeds of 20 and 60 m/min
• Higher productivity on site
• Wide range of accessories

GEDA MAXI 150S

• Lifting capacity up to 150 kg
• Greater transport capability than the MAXI 120S
• Lifting speeds of 15 and 45 m/min
• Excellent performance for heavier loads
• Wide range of accessories

In practice, most professional contractors choose the MAXI 120S because it offers the best balance between lifting capacity, speed, versatility, and cost-effectiveness.

Why Do Construction Companies Choose GEDA?

For more than 90 years, GEDA has specialised exclusively in vertical transportation equipment. As a result, GEDA products are trusted by hundreds of thousands of construction professionals throughout Europe and around the world.

Main Advantages of GEDA Equipment

• High reliability
• Excellent spare parts availability
• Long service life
• Strong resale value
• Compliance with European safety standards
• Expandable with a wide range of accessories

Who Is the GEDA MAXI 120S Designed For?

The GEDA MAXI 120S has been designed for professional construction companies that regularly transport materials to elevated work areas.

Roofing Contractors

Ideal for transporting roof tiles, membranes, tools, flashing materials, and roofing accessories quickly and safely.

Scaffold Erectors

Allows efficient transportation of scaffold components, platforms, braces, and installation tools during scaffold assembly and dismantling.

Façade Contractors

Perfect for insulation systems, rendering, cladding, and façade renovation projects where materials need to be transported safely to working levels.

Solar Installation Companies

Frequently used for lifting mounting systems, tools, and photovoltaic installation components to rooftops.

General Construction and Renovation Contractors

Suitable wherever regular transportation of materials to upper floors is required, including apartment buildings, commercial developments, and industrial facilities.

Equipment Rental Companies

Its ease of use, reliability, and strong market demand make the MAXI 120 S a popular choice for professional equipment rental fleets.

Safety Features

The GEDA MAXI 120S includes several features designed to improve operational safety:

• Overload protection system
• Rope anti-twist protection
• Emergency stop switch
• Professional control pendant
• Gas spring-supported lifting mechanism

These features help ensure safe operation during daily use on construction sites.

Compact Design and Easy Transportation

Despite its impressive performance, the complete unit including the wire rope weighs only approximately 65 kg.

Its compact design with integrated electrical components minimises assembly time and allows the equipment to be prepared for operation quickly.

This is particularly important for contractors working on multiple projects.

Technical Specifications

• Lifting Capacity: 120 kg
• Wire Rope Length: 81 m
• Lifting Speed: 20 / 60 m/min
• Motor Power: 0.45 / 1.35 kW
• Power Supply: 230 V / 50 Hz
• Control Cable Length: 10 m
• Weight Including Rope: Approx. 65 kg
• Construction: Hot-dip Galvanized Steel

What's Included?

The package includes:

• Complete GEDA MAXI 120S hoist
• 81 m steel wire rope

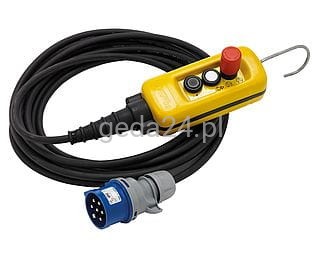

• 10 m wired control pendant
• Emergency stop switch

Additional transport accessories, swivel arms, brackets, baskets, and other components can be selected individually using the product configurator.

Frequently Asked Questions (FAQ)

Does the hoist operate from a standard 230 V power outlet?

Yes. The GEDA MAXI 120S operates from a standard 230 V power supply and does not require a three-phase electrical connection.

Can it be used on high-rise buildings?

Yes. Depending on the installation configuration, lifting heights of up to approximately 76m can be achieved.

Can different rope lengths be purchased?

Yes. Additional rope lengths and configuration options are available.

Is it suitable for photovoltaic installations?

Yes. With the appropriate attachment, the hoist is widely used for solar panel installation projects.

Are additional accessories required?

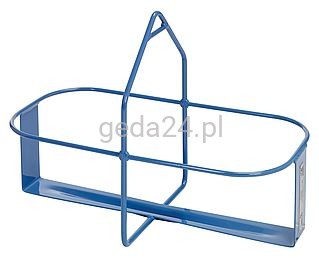

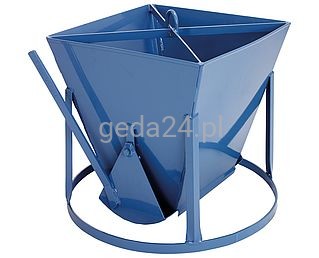

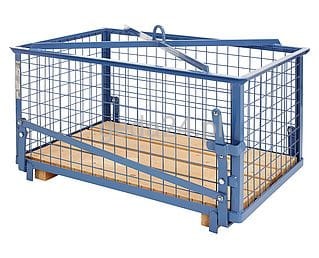

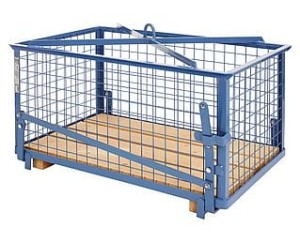

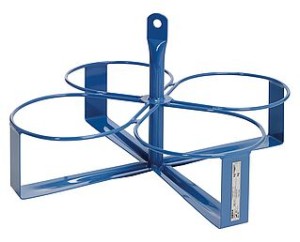

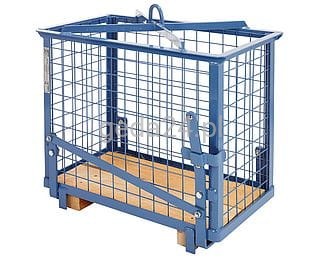

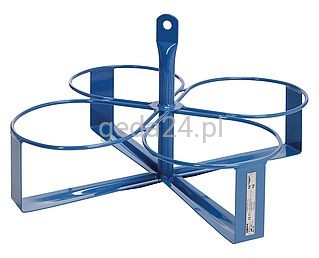

For most applications, suitable accessories such as transport baskets, bucket carriers, and swivel arms are recommended.

Why Buy the GEDA MAXI 120S from GEDA24?

As one of the largest GEDA partners in Europe, we offer:

• Professional technical support
• Fast delivery times
• Access to the complete GEDA product range
• Spare parts and service support
• Individual equipment configuration options
• Delivery throughout Poland and Europe

GEDA MAXI 120S – The Proven Choice of Construction Professionals

If you are looking for a reliable scaffold hoist, construction hoist, or professional lifting solution for transporting materials to elevated work areas, the GEDA MAXI 120S 81 m is one of the best solutions available on the market.

Every day, it helps construction companies increase productivity, reduce vertical transportation costs, and improve safety on site.
