GEDA MAXI 120S 81 m – Professional Scaffold Hoist for Fast Material Transport

The Most Popular GEDA Construction Hoist

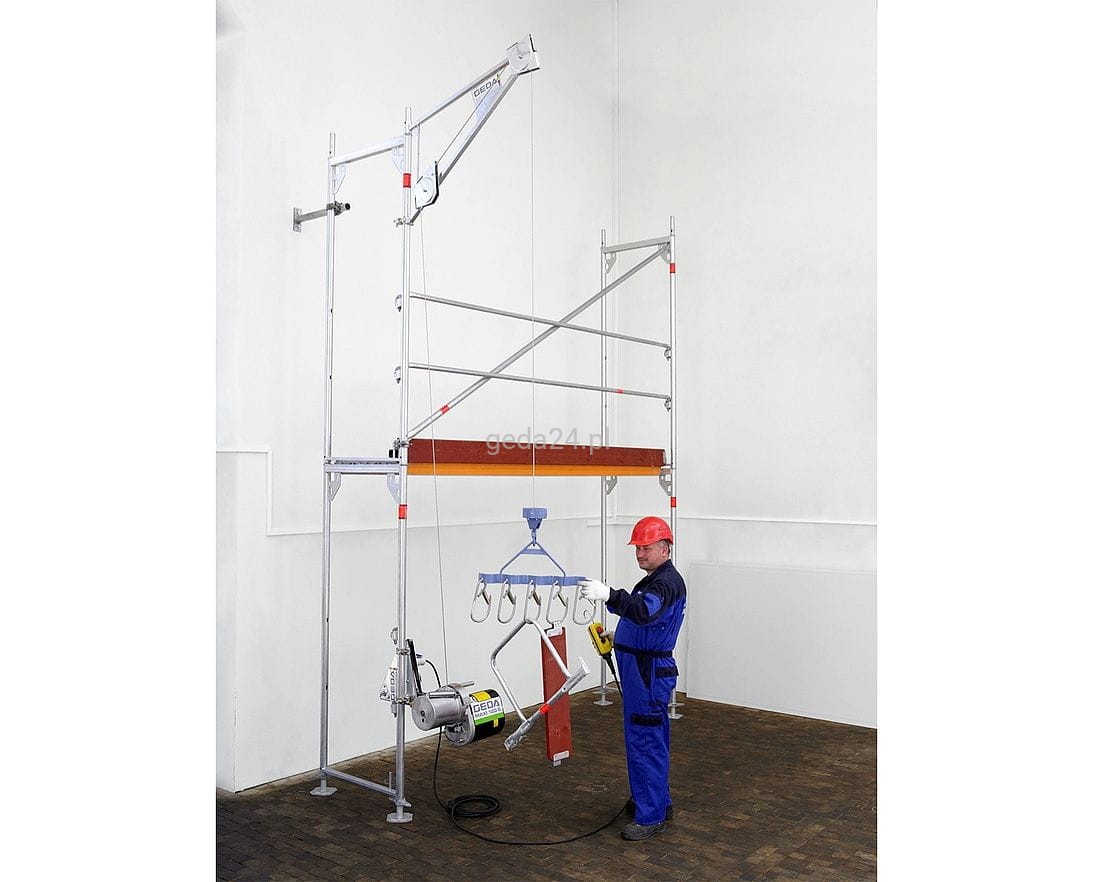

The GEDA MAXI 120S with an 81m wire rope is a professional rope hoist designed for transporting construction materials to scaffolding, rooftops, and upper floors of buildings.

For many years, this model has been one of the most frequently chosen construction hoists by scaffolding, roofing, façade, and renovation companies throughout Europe.

The combination of high lifting speed, low dead weight, and a lifting capacity of up to 120 kg significantly improves construction site logistics while reducing the need for manual transportation of materials via stairs, ladders, or scaffold structures.

This solution was developed for professionals who require safe and efficient transportation of tools, construction materials, and work equipment at height every day.

Why Choose the GEDA MAXI 120S?

Unlike basic construction hoists, the GEDA MAXI 120S has been designed for intensive daily use.

Its hot-dip galvanized steel construction provides excellent resistance to weather conditions, while the dual-speed lifting system allows operators to adjust lifting performance according to the type of load being transported.

The unit can be used for scaffold erection, roofing projects, façade works, renovations, residential construction, industrial facilities, and multi-family housing developments.

Key Benefits

• Fast transportation of materials to elevated work areas
• Reduced physical labor costs
• Improved worker safety
• Easy installation and dismantling
• Suitable for operation at significant heights
• Reliable construction from a renowned German manufacturer
• Wide range of transport accessories available
• Low dead weight
• High mobility between job sites
• Long service life even under intensive use

Dual Lifting Speeds – Up to 60 m/min

One of the greatest advantages of the GEDA MAXI 120S is its ability to operate at two lifting speeds:

• 20 m/min
• 60 m/min

This allows the operator to select the appropriate lifting speed depending on the type of material being transported.

For lighter loads, materials can be moved extremely quickly, significantly reducing project completion times.

With a maximum lifting speed of 60 m/min, the unit is among the fastest scaffold hoists available on the market within its class.

Extended Working Range with an 81m Wire Rope

The standard package includes an 81-meter steel wire rope.

Depending on the installation method, the hoist can operate at heights of:

• Approximately 40 m when the drive unit is installed at the bottom of the scaffold
• Up to approximately 76 m with the appropriate configuration and higher drive-unit positioning

These specifications make the GEDA MAXI 120 S suitable for both residential buildings and larger commercial construction projects.

Which Scaffold Hoist Should You Choose?

Selecting the right construction hoist depends primarily on working height, the type of materials being transported, and the intensity of use.

The GEDA MAXI 120S is most commonly chosen by construction, scaffolding, façade, roofing, and renovation companies that require a machine offering high lifting capacity, fast lifting speeds, and reliable long-term operation.

If materials are transported daily, investing in a professional hoist quickly pays for itself through labor savings and reduced physical effort.

Applications of the GEDA MAXI 120S

The unit is commonly used for:

• Scaffold assembly and dismantling
• Façade works
• Building renovations and refurbishments
• Residential house construction
• Solar photovoltaic installation projects
• Transporting tools and construction materials
• Lifting mortar, adhesives, and finishing materials
• Maintenance and service work
• Roofing projects
• Roof tile installation

What Materials Can Be Transported?

When equipped with the appropriate transport accessories, the hoist can be used for lifting:

• Buckets of mortar
• Bags of construction materials
• Scaffold components
• Façade materials
• Roofing accessories
• Gutters and sheet-metal flashings
• Construction tools
• Solar installation components
• Equipment used during renovation projects

Thanks to the extensive range of optional accessories, a single hoist can be utilized for many different applications.

COMPARISON: GEDA MAXI 120S vs. GEDA MAXI 150S vs. GEDA MINI 60S

Customers often compare the MAXI 120S with the MAXI 150S and the smaller GEDA MINI 60S.

GEDA MINI 60S

• Capacity up to 60 kg
• Compact dimensions
• Designed mainly for light-duty work
• Higher lifting speeds: 23 and 69 m/min
• Lower purchase price

GEDA MAXI 120S

• Capacity up to 120 kg
• Twice the transport capability of the MINI 60S
• Lifting speeds: 20 and 60 m/min
• Greater productivity on site
• Wide range of accessories

GEDA MAXI 150S

• Capacity up to 150 kg
• Higher lifting capacity than the MAXI 120S
• Lifting speeds: 15 and 45 m/min
• High productivity on site
• Wide range of accessories

In practice, most professional contractors choose the MAXI 120S because it offers the best balance of versatility, performance, and lifting capacity.

Why Do Construction and Scaffolding Companies Choose GEDA?

For more than 90 years, the German manufacturer GEDA has specialized exclusively in vertical transport equipment.

As a result, GEDA solutions are used by hundreds of thousands of construction companies throughout Europe and worldwide.

Key Advantages of GEDA Equipment

• High reliability
• Excellent spare parts availability
• Long service life
• Strong resale value
• Compliance with European safety standards
• Expandable with additional accessories and equipment

Who Is the GEDA MAXI 120S Designed For?

The GEDA MAXI 120S was developed for professional construction companies that regularly transport materials to elevated work areas.

It is particularly valued by contractors who prioritize speed, safety, and reduced labor costs.

For Roofing Companies

The hoist is ideal for roof construction and renovation projects.

It enables fast transportation of roof tiles, membranes, tools, sheet-metal flashings, and other roofing materials, allowing workers to focus on installation rather than carrying materials manually.

For Scaffold Erectors

The GEDA MAXI 120S is one of the most commonly used machines for scaffold assembly and dismantling.

It efficiently transports structural components, platforms, braces, and installation tools, significantly accelerating project completion.

For Façade Contractors

During insulation, rendering, and façade renovation works, the hoist allows convenient transportation of adhesives, mortar, mesh, tools, and other materials without the need to carry them manually across scaffolding.

For Solar Installation Companies

An increasing number of photovoltaic contractors use GEDA hoists for PV installations.

The machine safely transports tools, mounting systems, and equipment required for rooftop work.

For General Construction and Renovation Contractors

The MAXI 120S is suitable wherever regular transport of materials to upper floors is required.

It is frequently used for apartment building renovations, industrial facilities, commercial projects, and historic building refurbishments.

For Equipment Rental Companies

Due to its simple operation, high reliability, and strong market demand, the GEDA MAXI 120 S is also a popular addition to professional construction equipment rental fleets.

Safety Features

The GEDA MAXI 120S is equipped with several features designed to enhance operational safety:

• Overload limiter protecting both the hoist and scaffold structure
• Anti-twist rope protection
• Emergency stop switch
• Professional control panel
• Gas spring supporting the lifting system

These features ensure compliance with the requirements of professional contractors working at height every day.

Compact Design and Easy Transportation

Despite its impressive performance specifications, the complete unit including the wire rope weighs only approximately 65 kg.

The compact design with integrated electrical components minimizes assembly work and allows the hoist to be quickly prepared for operation.

This is especially important for crews that frequently move between projects.

Technical Specifications – GEDA MAXI 120S 81m

• Lifting Capacity: 120 kg
• Rope Length: 81 m
• Lifting Speed: 20 / 60 m/min
• Motor Power: 0.45 / 1.35 kW
• Power Supply: 230 V / 50 Hz
• Control Cable Length: 10 m
• Weight Including Rope: approx. 65 kg
• Construction: Hot-dip galvanized steel

What's Included?

The package includes:

• Complete GEDA MAXI 120S hoist
• 81 m steel wire rope
• 10 m wired control pendant
• Emergency stop switch

Additional transport accessories, swivel arms, mounting brackets, transport baskets, and other equipment can be selected individually from the hoist accessories range.

Frequently Asked Questions (FAQ)

Does the unit operate from a standard 230 V power outlet?

Yes. The GEDA MAXI 120 S operates on standard 230 V power and does not require a three-phase electrical supply.

Can it be used on high-rise buildings?

Yes. Depending on the configuration, the hoist can reach lifting heights of up to approximately 76 m.

Can I buy ropes in other lengths?

Yes. Other equipment options and configurations are also available.

Is it suitable for photovoltaic installations?

Yes. When fitted with the appropriate attachment, GEDA hoists are widely used by photovoltaic installation companies.

Are additional accessories required?

For most applications, selecting suitable transport accessories such as baskets, bucket carriers, or swivel arms is recommended.

Why Buy the GEDA MAXI 120S from GEDA24?

As one of the largest GEDA partners in Europe, we offer:

• Professional technical advice
• Fast delivery times
• Access to the complete manufacturer's product range
• Spare parts and service support
• Individual machine configuration options
• Delivery throughout Poland and Europe

GEDA MAXI 120S – The Proven Choice of Professionals

If you are looking for a reliable scaffold hoist, construction material hoist, or professional lifting solution for transporting materials at height, the GEDA MAXI 120S 81 m is among the best products available on the market.

It is a machine that helps construction companies increase productivity, reduce vertical transport costs, and improve job-site safety every day.
