Material Hoist Geda 500 Z F 6m - STANDARD version
Regular price:
Regular price:
product unavailable
add to wish list
4.87
Description
Feel free to contact us for personalized terms and conditions!!!

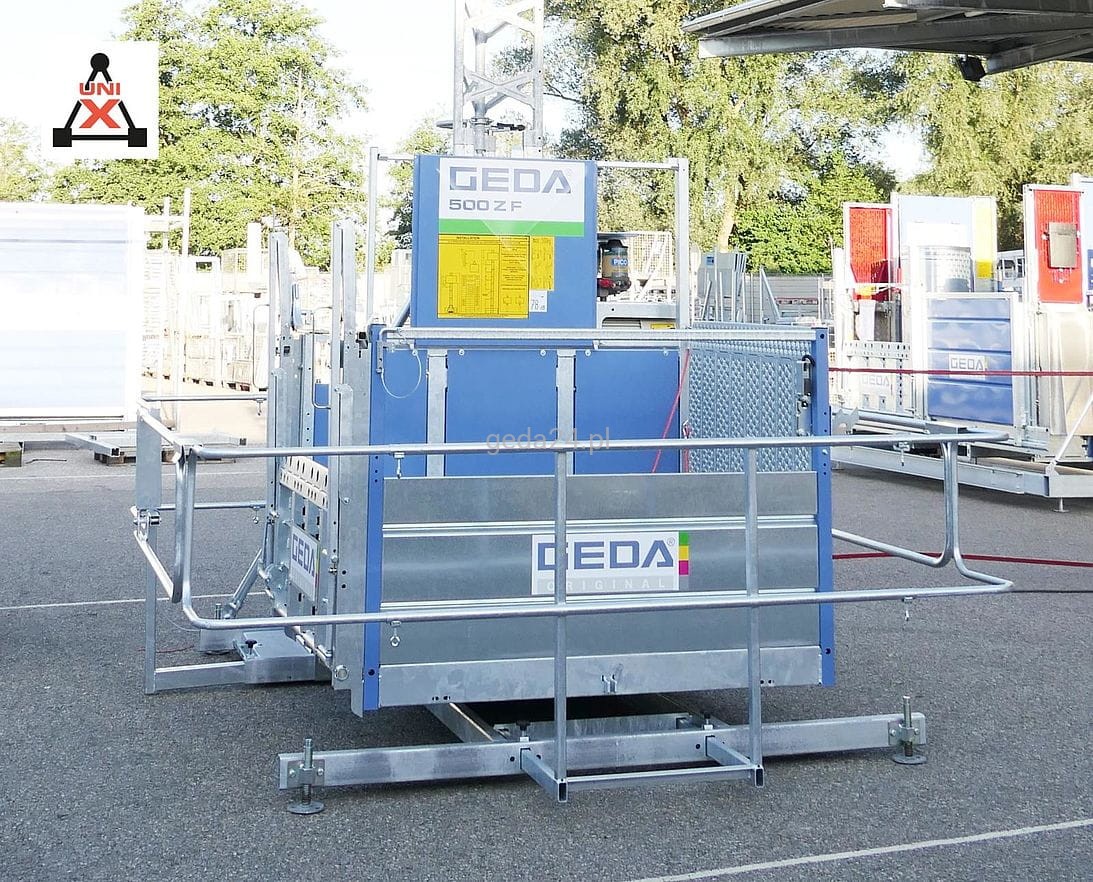

Material Hoist Geda 500 Z F 6m - STANDARD version
- free-standing (without anchors up to heights of 9.5 m)
- large, loadable transport platform
- stable construction
- GEDA UNI-X-MAST 1.5 m (hot dip galvanised) with four captive screws (M16) and nuts
Geda 500 Z F is a powerful and efficient equipment for low and high heights (up to 100m in the anchored version). The unit combines the advantages of a compact material handling hoist with the flexible possibilities of a freestanding construction lift. The premium version of the lift has the ability to operate without anchoring for unloading up to a height of 9m ((the standard version allows unloading at a height of 6m).). The hoist is an excellent solution wherever it isn't possible to anchor to a building or other structure.
- Power supply: 5.5 kW / 400V / 50 Hz / 16 A
- Load capacity (material): 500 kg
- Lifting speed: 24 m/min
- Lifting height: 100 m (current version 6 m)
Set consisting of:
- Foot section with 5 adjusting spindles, forklift access and base mast 2.3 m
- Drive unit 5.5 kW/400 V/50 Hz
- Load platform with grating and supervised loading flaps (1.6 x 1.4 x 1.1/1.8 m)
- Trolley with overspeed safety brake
- Safety stop approx. 2 m above the ground with warning sound
- Operation and emergency limit switches at top and bottom
- Power socket 230 V
- Overload protection with indication
- Integrated monitoring of the mast screwing and mast end
- Stop bars (1 x landing level, 1 x emergency off)
- Assembly control 6.5 m, plug-in type
- Hour meter
- Landing pre-selection control
- Automatic lubrication system
- Cable bin with trailing cable 25 m (possible options 50 / 75 / 100m depending on version)
- Aluminium bottom plate
- Ballast weight (2 x 150 kg)
- Control for drop test
- Base enclosure
- GEDA UNI-X-MAST 1.5 m (hot dip galvanised) with four captive screws (M16) and nuts
- Trailing cable guide
If you have any further questions, please email us: p.wolny@geda24.pl
