Material Hoist Geda 500 Z 50m
Regular price:
Regular price:
product unavailable
add to wish list
5
Description
Feel free to contact us for personalized terms and conditions!!!
Material Hoist Geda 500 Z 51m:
Rack and pinion hoist with galvanised steel mast
• Load capacity 500 kg
• Lifting speed 30 m/min
• Lifting height 100 m
• Drive unit 5.5 kW/400 V/50Hz

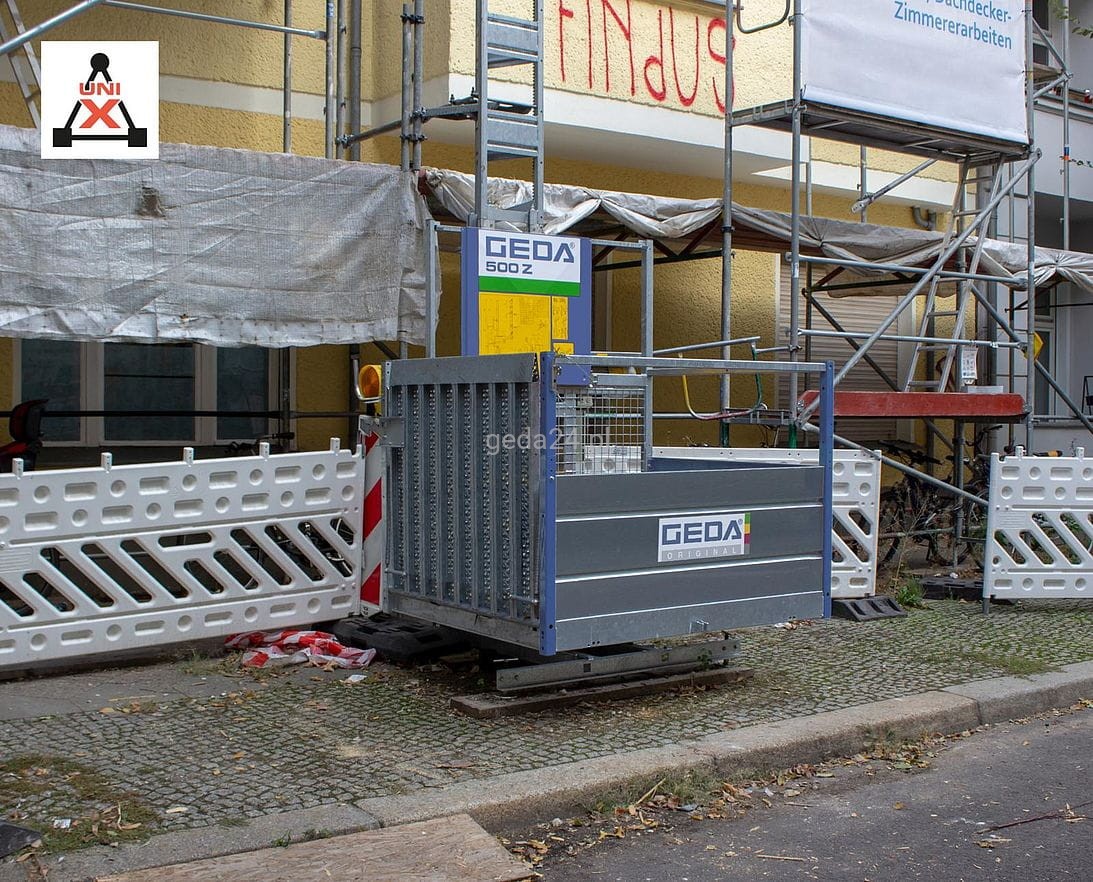

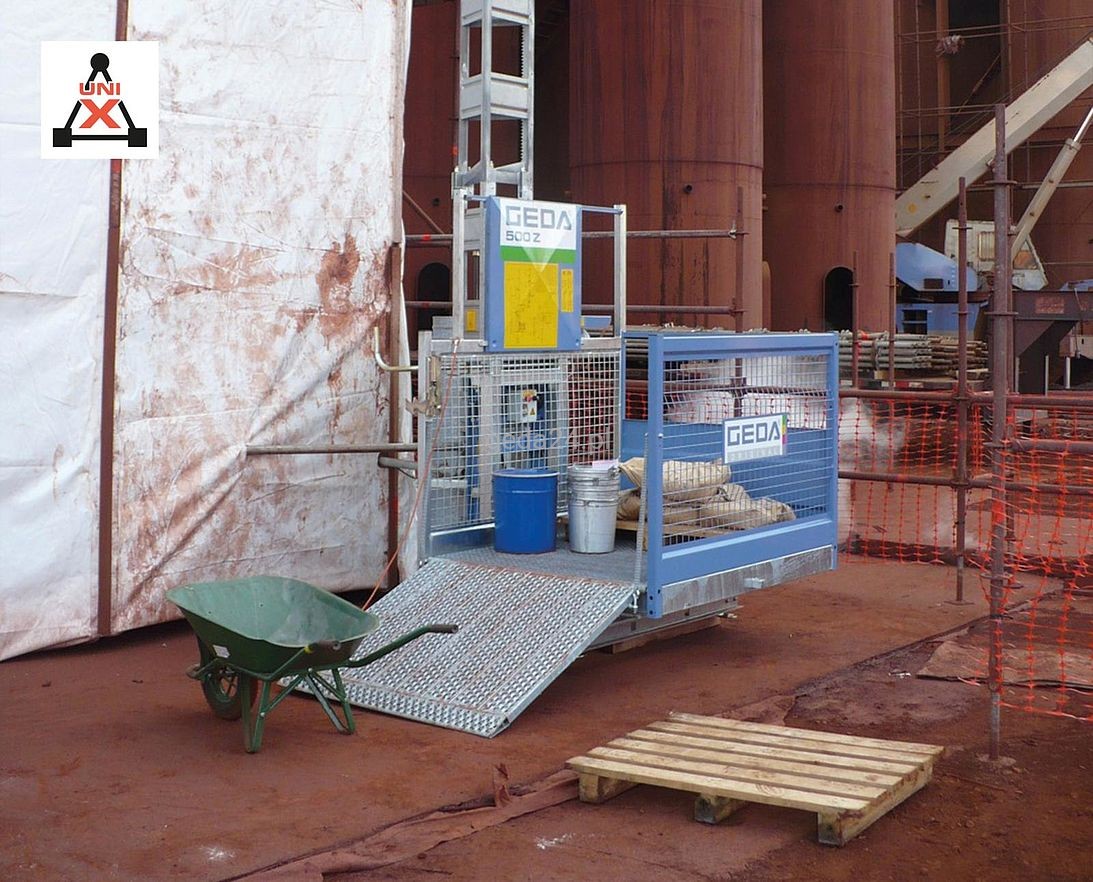

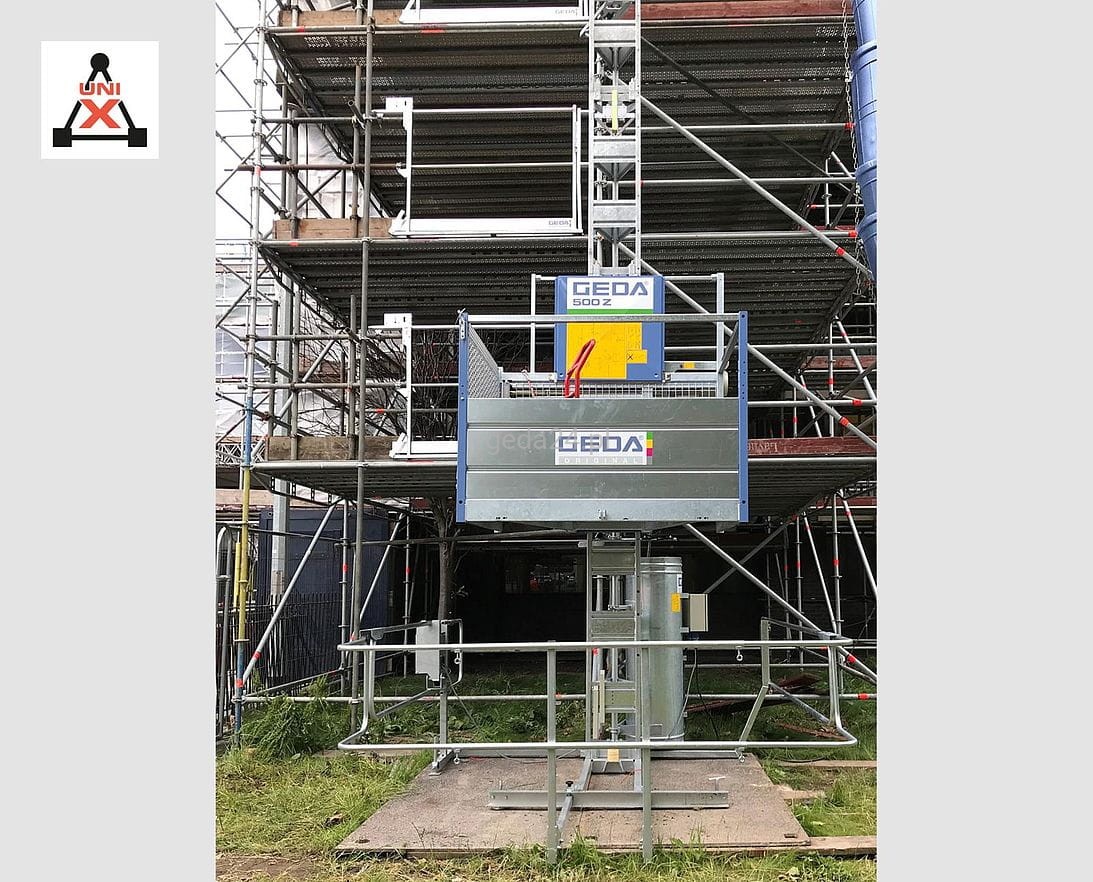

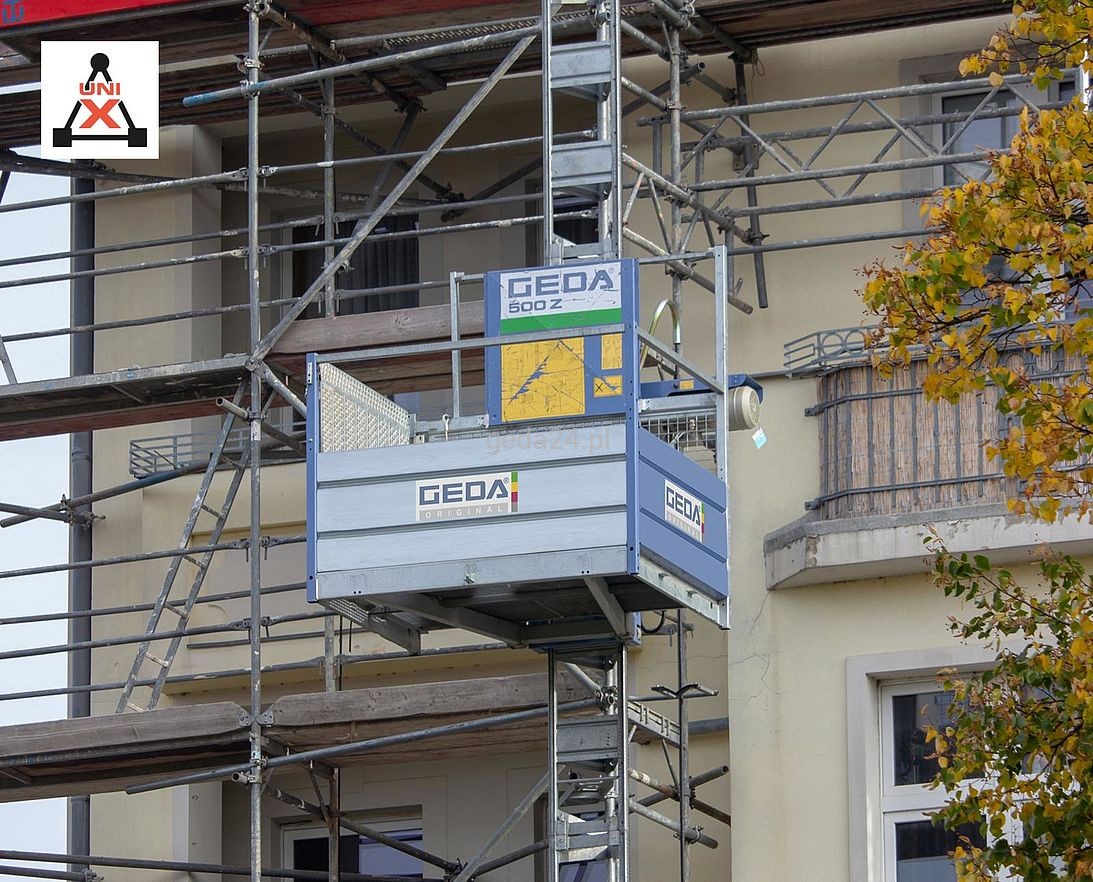

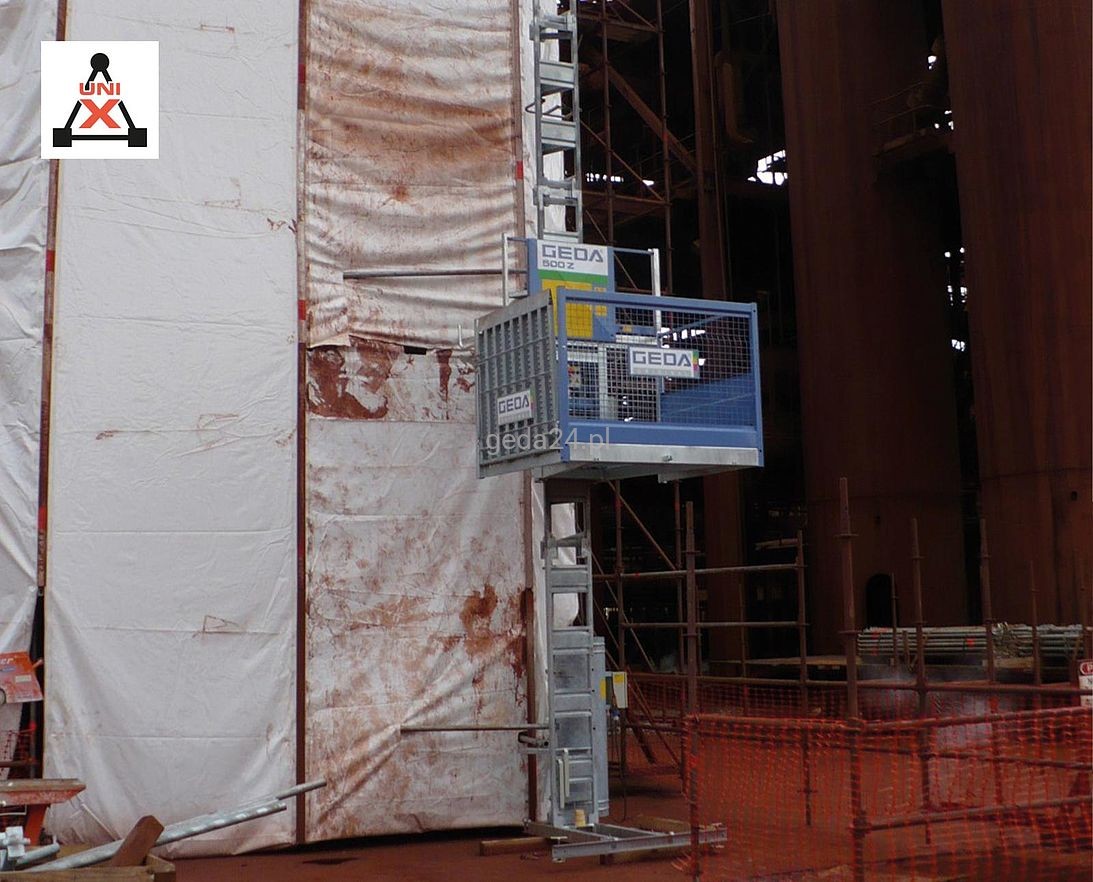

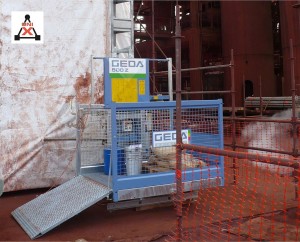

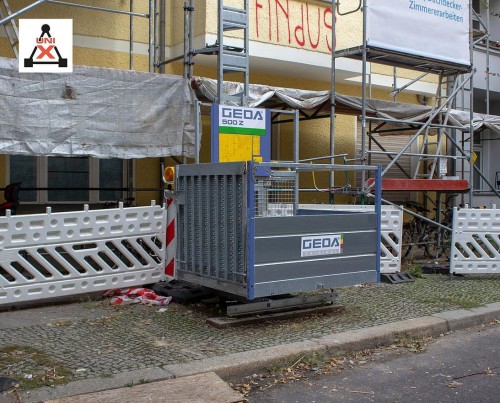

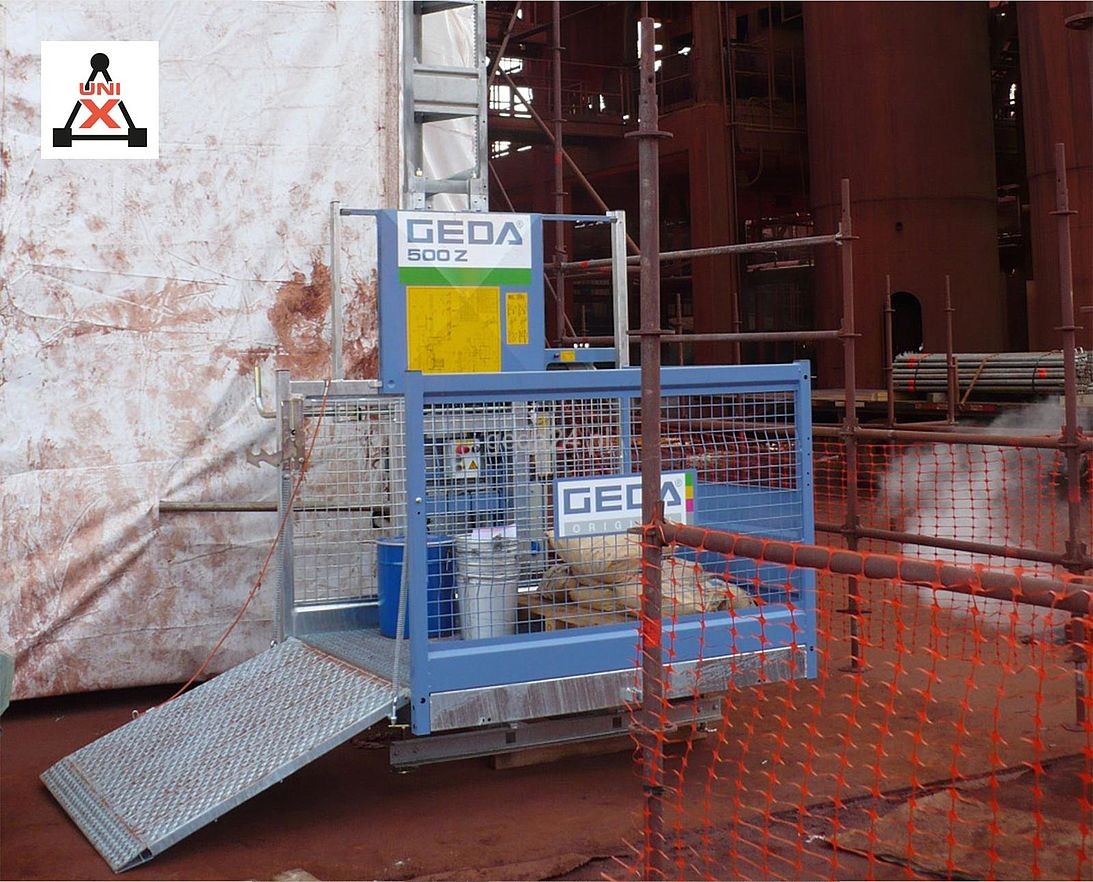

Geda 500 Z DUO is a powerful and efficient equipment for low and high heights (up to 100m in the anchored version). Thanks to its spacious platform, this powerful material lifter offers sufficient space for heavy, bulky building materials weighing up to 500 kg. The unit is able to move the load up to a height of 100 m at a speed of 30 m/min! GEDA 500 Z platform can be rotated by 90 degrees, allowing safe and convenient loading and unloading at different platform levels. At the ground station, items can be loaded parallel to the building, saving space. The hoist is an excellent solution wherever it isn't possible to anchor to a building or other structure.
Base unit consisting of:
• Foot section with 2 adjusting spindles and base mast 2.3 m
• Load platform with supervised loading flap (1.6 x 1.4 x 1.1/1.8 m) and gate key for landing level safety gate
• Swivel trolley with overspeed safety brake
• Safety stop approx. 2 m above the ground with warning sound
• Operation and emergency limit switches at top and bottom
• Limit switch for swivel of trolley with overload protection
• Assembly control permanently installed, with key switch assembly/operation and power socket
• Overload protection with indication
• Stop bars (1 x landing level, 1 x emergency off)
• Manual control 5 m, plug-in type
• Cable bin with trailing cable 50 m
• GEDA UNI-X-MAST x 33 pcs
• Set of mast tie x 8 pcs.
• Trailing cable guide x 8 pcs.
If you have any further questions, please email us: p.wolny@geda24.pl
