Industrial material hoist Geda 1200 ZM P for 6m
Regular price:
Regular price:
product unavailable
add to wish list
5
Description
Feel free to contact us for personalized terms and conditions!!!

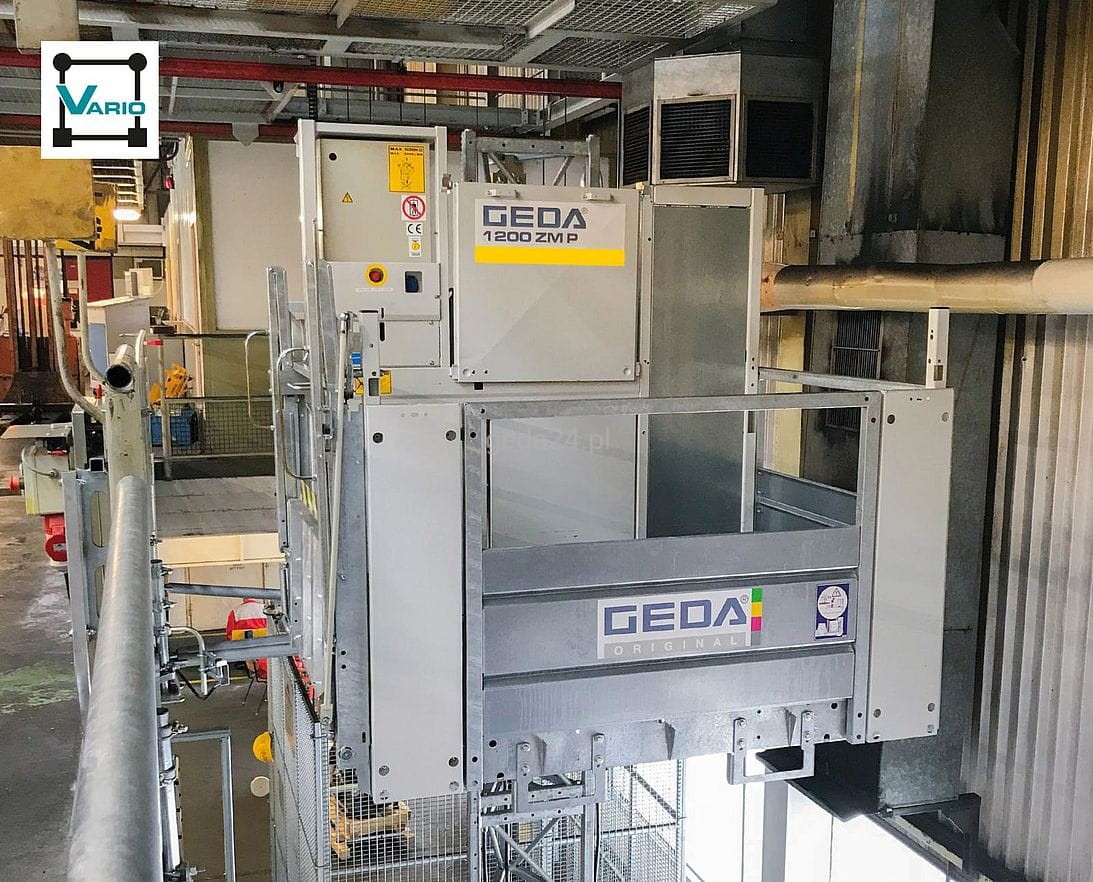

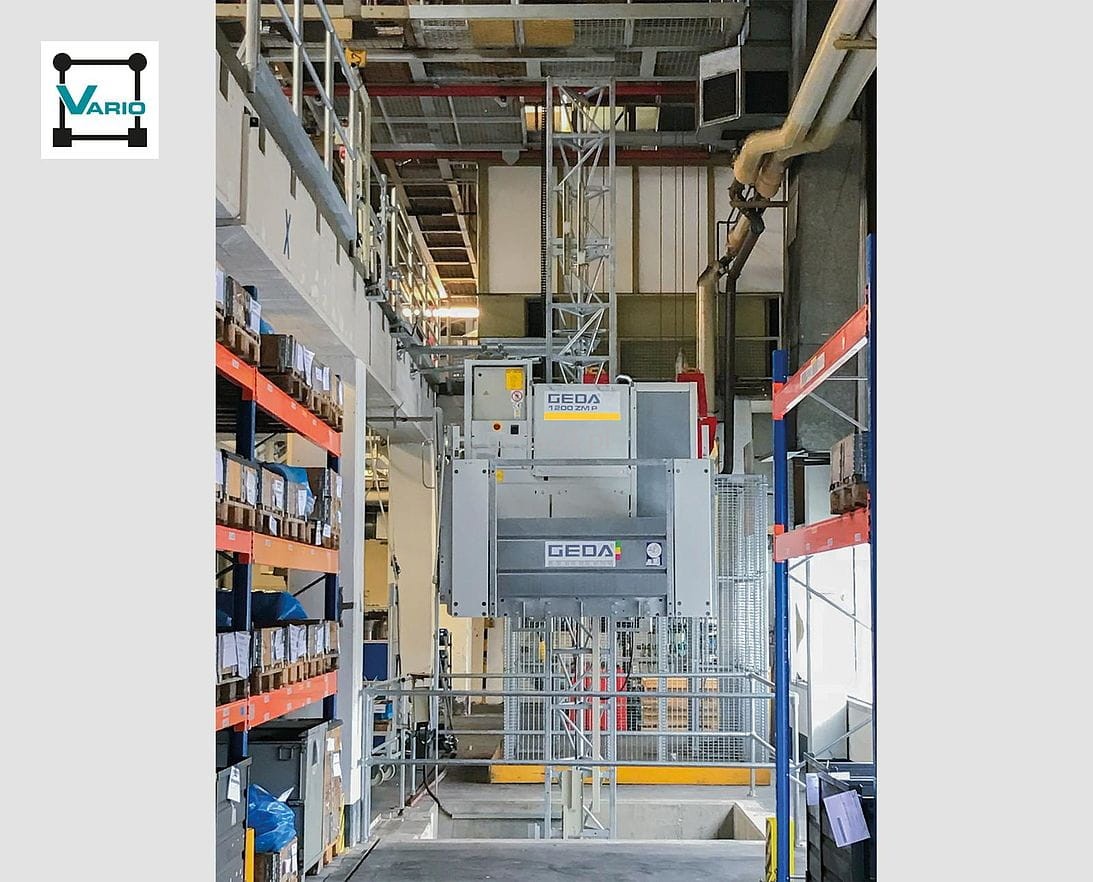

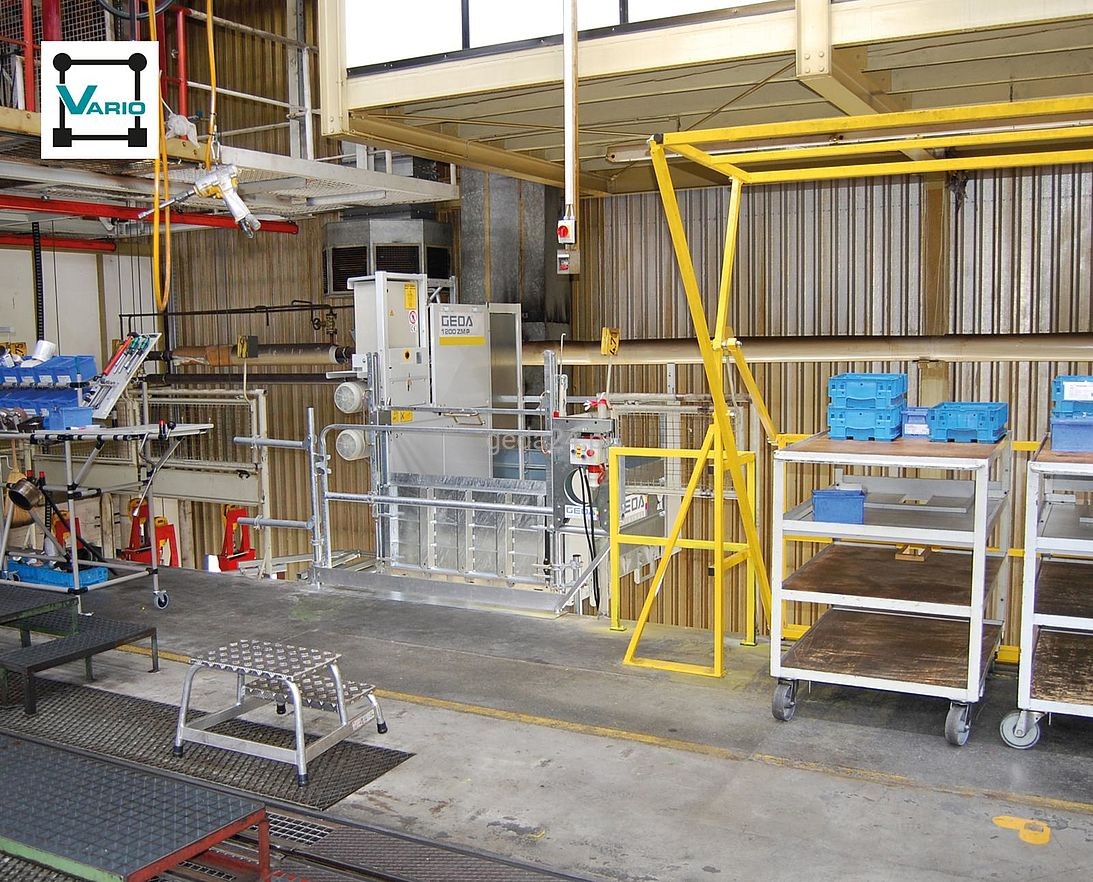

Permanent material hoist GEDA 1200 ZM P offers a simple and inexpensive material handling system with a large, open loading platform.
The well-known GEDA UNI-MAST system guarantees easy installation directly from the loading platform up to a height of 100 m. Without the use of a crane, the 1.5 m mast segments can be set up and secured with bolts incorporated into the mast and locking nuts.
The hoist can be installed at various structures and in buildings in the private sector.
With a load capacity of up to 1,500 kg and a lifting speed of 9 m/min, the GEDA 1200 ZM P has proven itself as a helpful machine in many production companies and warehouses.
Basic data GEDA 1200 ZM P
Load capacity: up to 1,500 kg (dependent on transport platform)
Platform size: 3 variants available 1.4 x 2m (variant shown) or 1.4 x 2.6m, or 1.4 x 3.2m
Lifting height: 100 m
Lifting speed: 9 m/min.
Power supply: 2 x 3 kW / 6.1 kW / 400 V / 50 Hz / 32 A
RAL colour: RAL 5014 (other colours available as an option)
The presented unit allows lifting to a height of 6m and has as standard:
1. CABIN:
Features
▪ Overload protection with indication
▪ Hour meter
▪ Automatic lubrication system
▪ Overspeed safety device
Technical details
▪ Drive unit <78dB (A)
▪ Operating voltage 3 kW / 400 V / 50 Hz / 16 A
▪ IP-grade electrical cabinets: IP 54
▪ Operating temperature -20°C to +40°C
▪ Ambient temperature -20°C to +40°C
Entry and exit
▪ Entry: Ramp for straight entry and exit
▪ Exit: Ramp for straight entry and exit
▪ Entry: Mechanically locked and electrically supervised
▪ Exit: Mechanically locked
Material
▪ Pre-galvanized solid steel panels in RAL 5014 (pigeon blue)
▪ Car floor: wood
2. Car guidance
Mast system
▪ GEDA- VARIO-MAST System (Triangular)
▪ 1500mm high elements
Material
▪ Hot dipped galvanized steel
3. Mast tie-ins
Design
▪ Set of mast ties for wall fixing with fixing tubes
▪ Attached to steel structure
4. Cable system
Design
▪ Cable bin for round cable
▪ Cable guides as demolition security for cable system
5. Base enclosure
Design
▪ Base enclosure 1,10m - with 2m safety stop and acoustic signal
▪ Pit for elevator to be provided on site for flat entry 350 mm
Control
▪ Moving upwards within 2m safety stop: Dead man control
▪ Moving upwards outside 2m safety stop: Automatic travel upwards to the next landing
▪ Moving downwards within 2m safety stop: Dead man control
▪ Moving downwards outside 2m safety stop: Automatic moving downwards to 2m safety stop
Entry and exit
▪ Gate
▪ Mechanically and electrically locked
Material
▪ Galvanized construction
▪ Gate: galvanized steel
6. Landings
Design
▪ Landing level safety gate 1,10m attached to the building
▪ Opening direction: Left opening (viewed from elevator car)
Technical details
▪ Mechanically and electrically locked
▪ Anchored to floor
Control
▪ For 1,10m base enclosure
o Upwards: Call control above 2m safety stop - dead man control
o Downwards: Send control until 2m safety stop - dead man control
Material
▪ Galvanized steel
The unit shown is for demonstration purposes only. The actual full quotation will take place after the unit has been prepared and designed to the customer's design by Geda Industrial Elevators Department.
