Geda Lift Standard 8,5m
Regular price:
€5,707.20
Regular price:
€4,640.00
product unavailable
add to wish list
5
Description

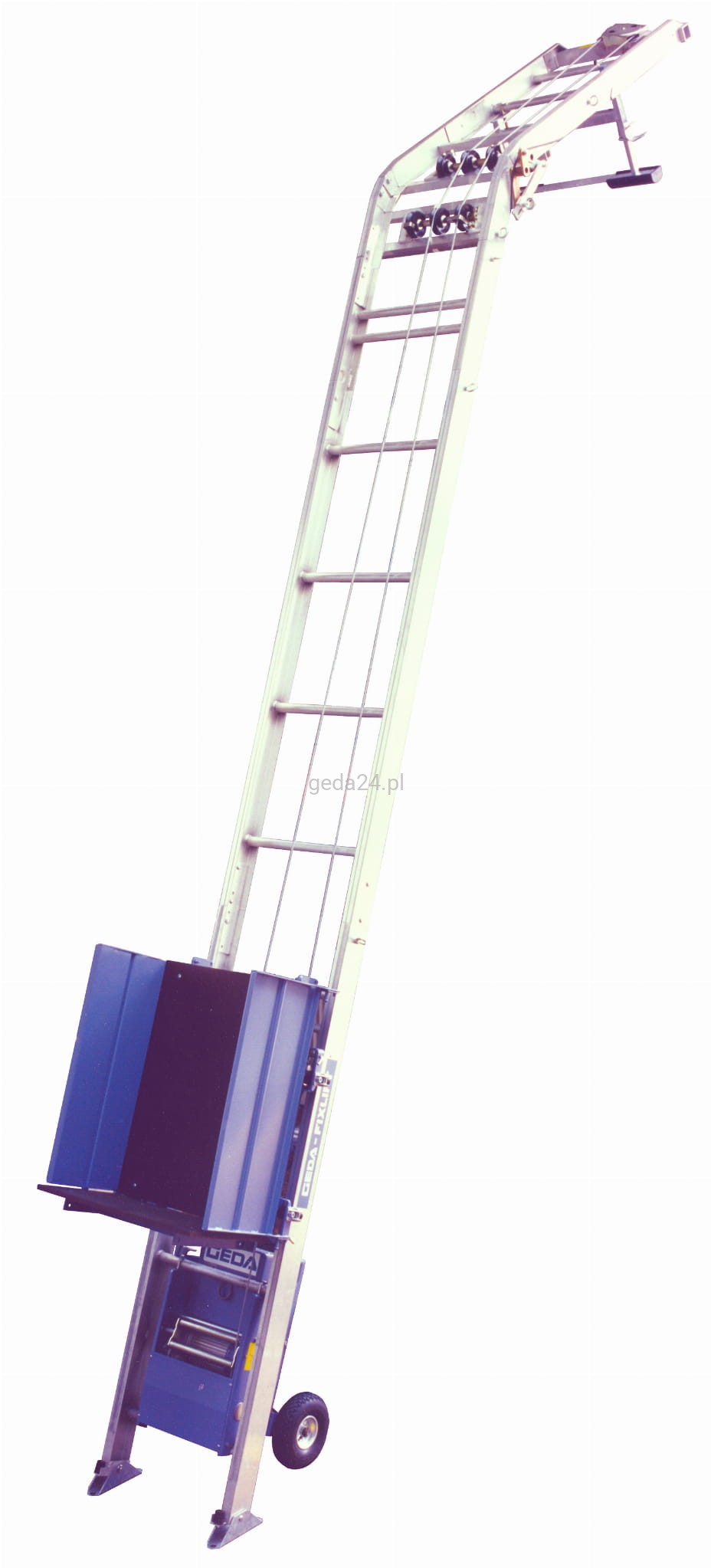

Geda Lift Standard 8,5m

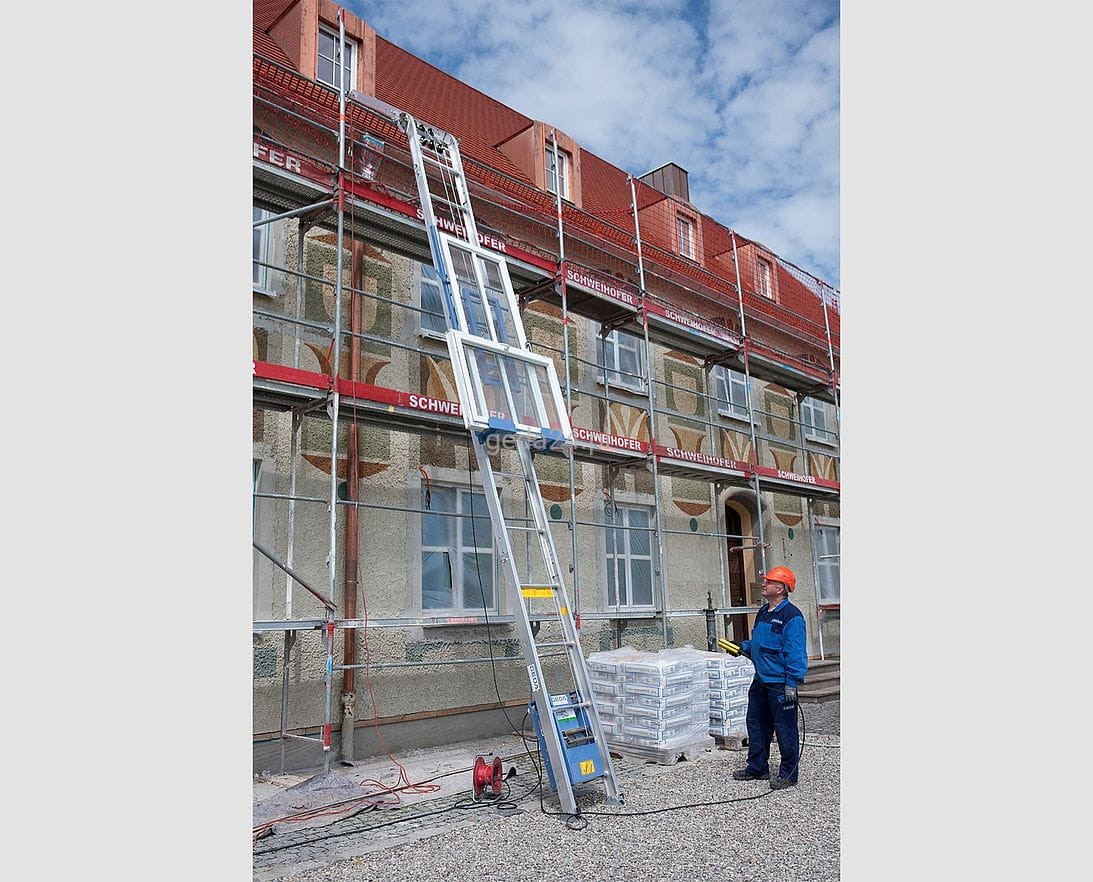

Inclined hoists from GEDA have been produced for decades. Their reliability makes them a favourite transport device for roofers and construction workers. The robust and strong GEDA Lift Standard bravely transports up to 200 kg. Fast and easy installation without tool saves time. Special accessories enable virtually all types of materials to be transported upwards to the roof and into the building. The length of the aluminium ladder sections up to 21m (standard version, max. possibility up to 41m) makes it easy to work on single-family buildings. An AC power connection is sufficient to transport materials up to 200 kg. The load capacity depends on the design of the aluminium ladder sections, the inclination and the rail length.. Its compact dimensions when folded up make it easy to transport and store.
Technical details:
- Load capacity (material): up to 200 kg / note: the load capacity depends on the slope, type and number of aluminium segments,
- Lifting speed: 25 m/min.,

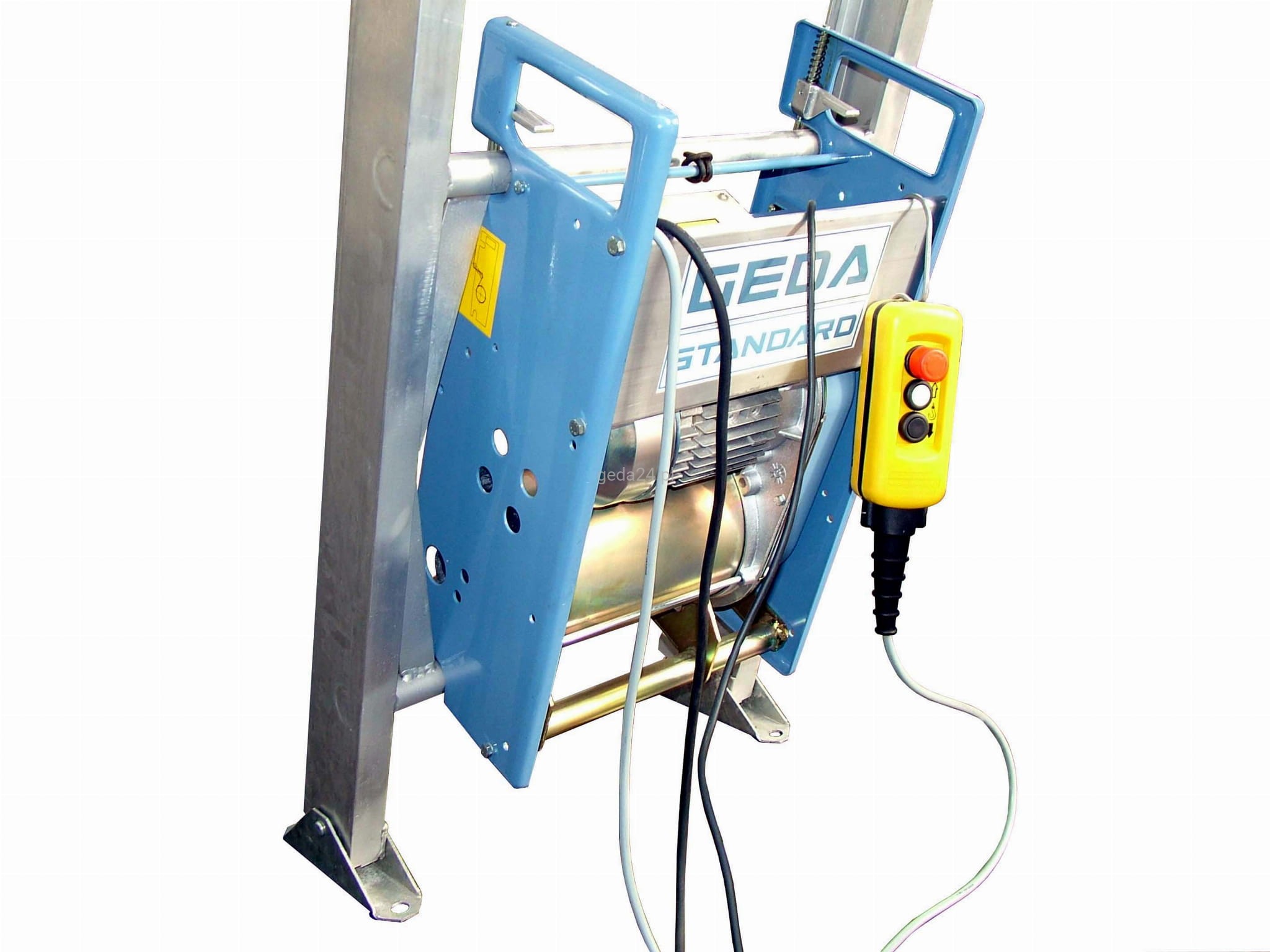

- Electric winch unit 230 V/50 Hz with 43 m steel wire rope (6 mm Ø), 21 m limit switch cable,
- Limit switch and control unit are integreted,
- All GEDA LIFT can be used up to an eave height of max. 19 m,
- Power supply: 1,0 KW / 230V / 50Hz.
Advantages of Geda LIFT:
- easy and quick assembly/disassembly time (no tools required),
- convenient transport and use at any construction site,
- saves time and labour costs,
- expandability of each set,
- increased safety at work,
- reliability for decades.
Set consisting of:

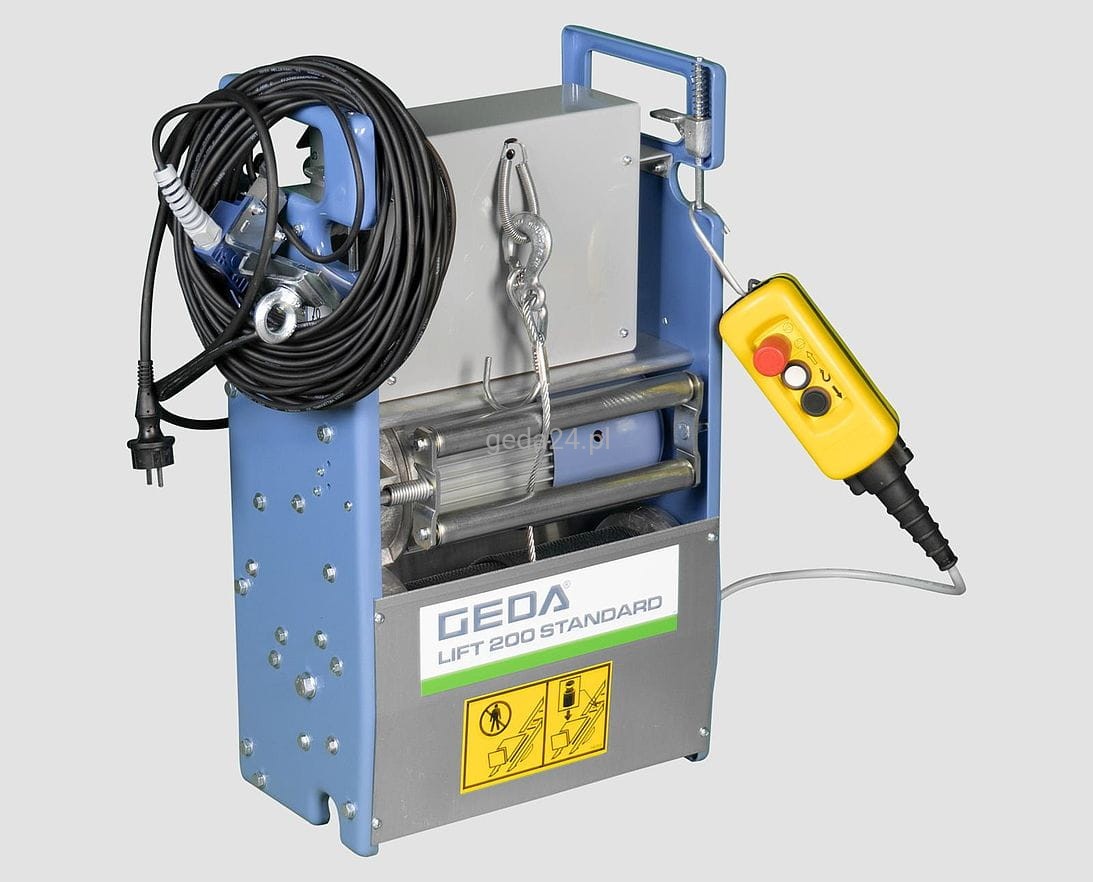

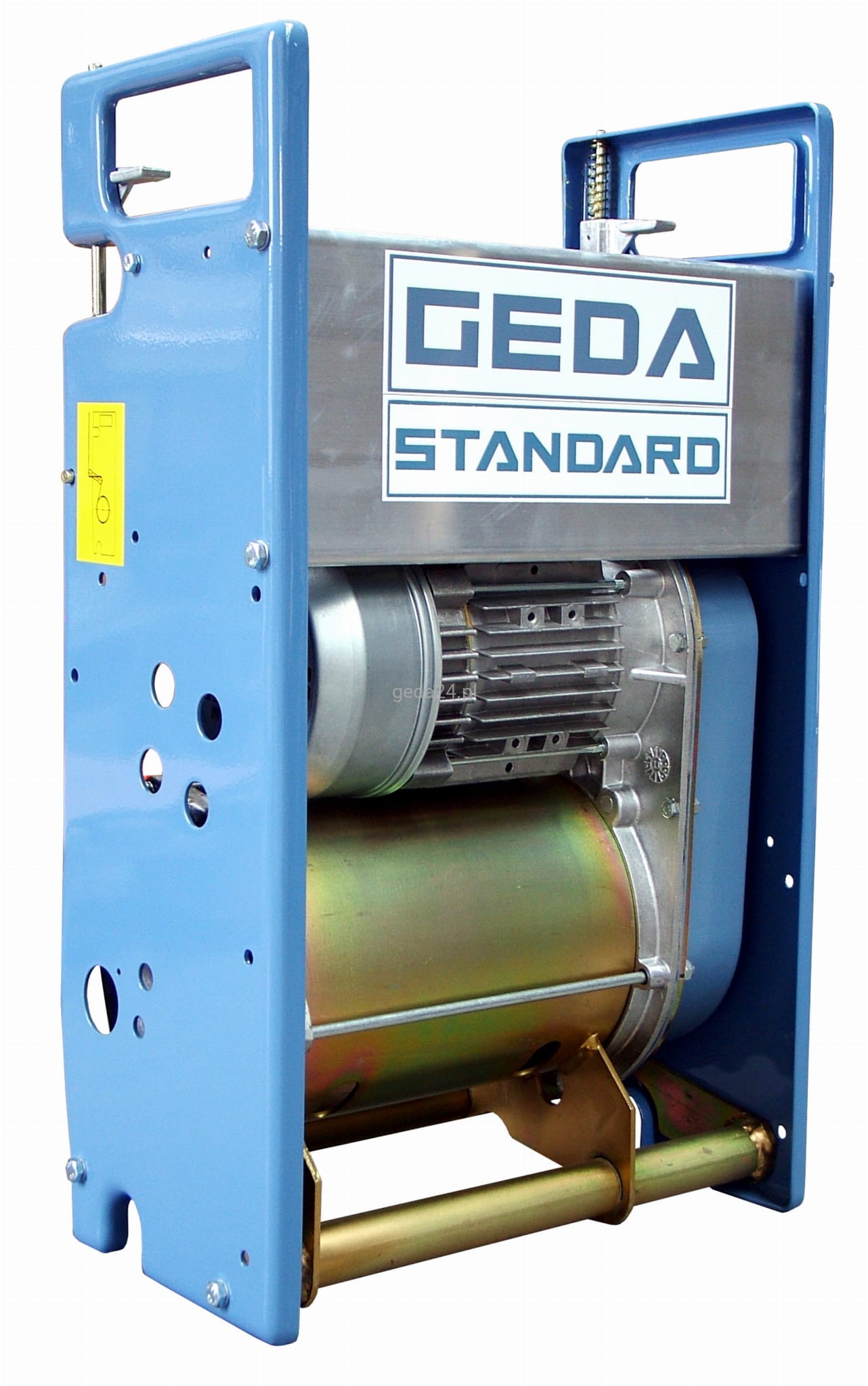

- Electric winch unit 230 V/50 Hz with 43 m steel wire rope (6 mm Ø), (weight 56 kg),
- Integreted limit switch with 21 m cable,
- Integreted manual control with emergency-off button and 5 m cable (24 V)
- Standard trolley with safety brake in case of rope failure,
- Head section with quick clamping pulley,
- Foot ladder section 2 m,
- Ladder section 200 kg 2 m complete with ring nuts x 3 szt.,
- Angle track section infinitely adjustable 20° to 45,
- General purpose platform with hinged side guards.
We would like to inform you that, as an Authorised Service Centre, we are able to extend the sets offered as standard (max 21 m) to a total runway length of 31m, or even prepare a longer length for you on special request. Conversion to the longer version doesn't void the guarantee.
